Feature:
1. BNC Interface: This high voltage differential probe adopts a BNC interface, which can be used to connect with any oscilloscope conveniently.
2. Compact And Portable: This oscilloscope high voltage differential probe is small in size and light in weight, which makes it very convenient to carry around and use.
3. Quick Zero: This high voltage differential probe kit can be quickly zeroed. When the test s are shorted and the zero button is pressed, the probe can be zeroed very quickly.
4. High Accuracy: The oscilloscope clip probe kit is highly accurate as its high common mode rejection ratio, high input impedance and low input capacitance minimize loading effects and greatly improve the accuracy of differential signals.
5. Wide Application: This oscilloscope probe kit has a wide range of applications and can be used for floating measurements, high voltage isolation measurements, switching power supply design, power converter design, inverters, UPS power supplies, soldering, plating power supplies, electronic ballast design, motor drive design, induction heating, induction cookers, CRT display design, low voltage electrical appliances, electronic power and power driven experiments.
Specification:

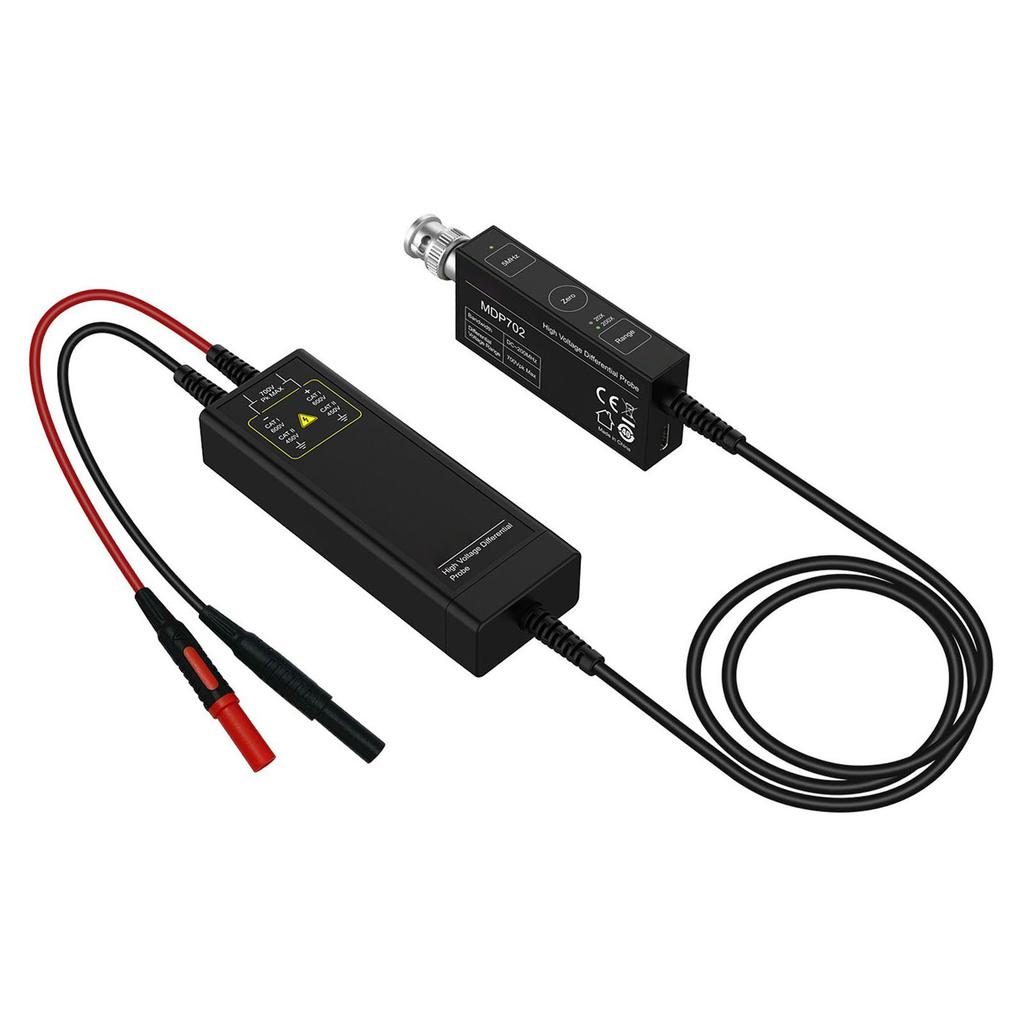

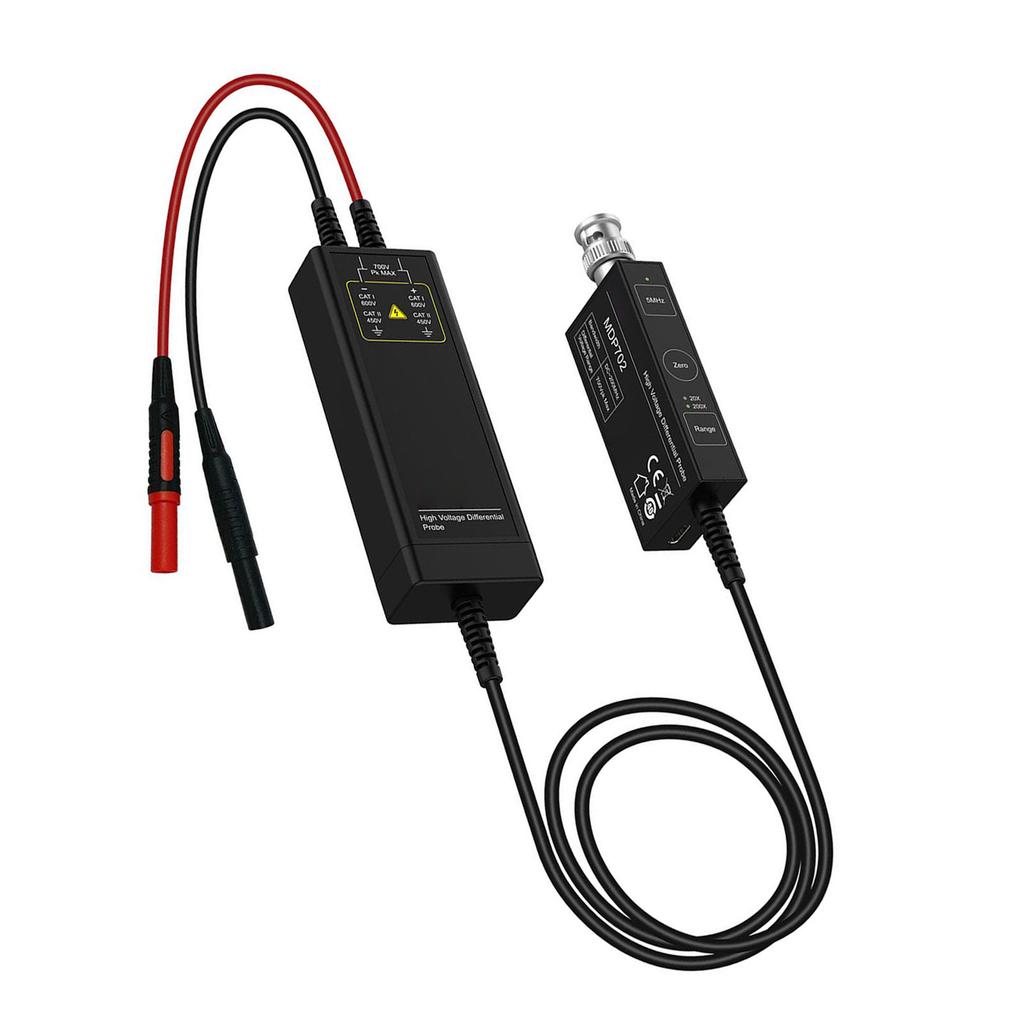

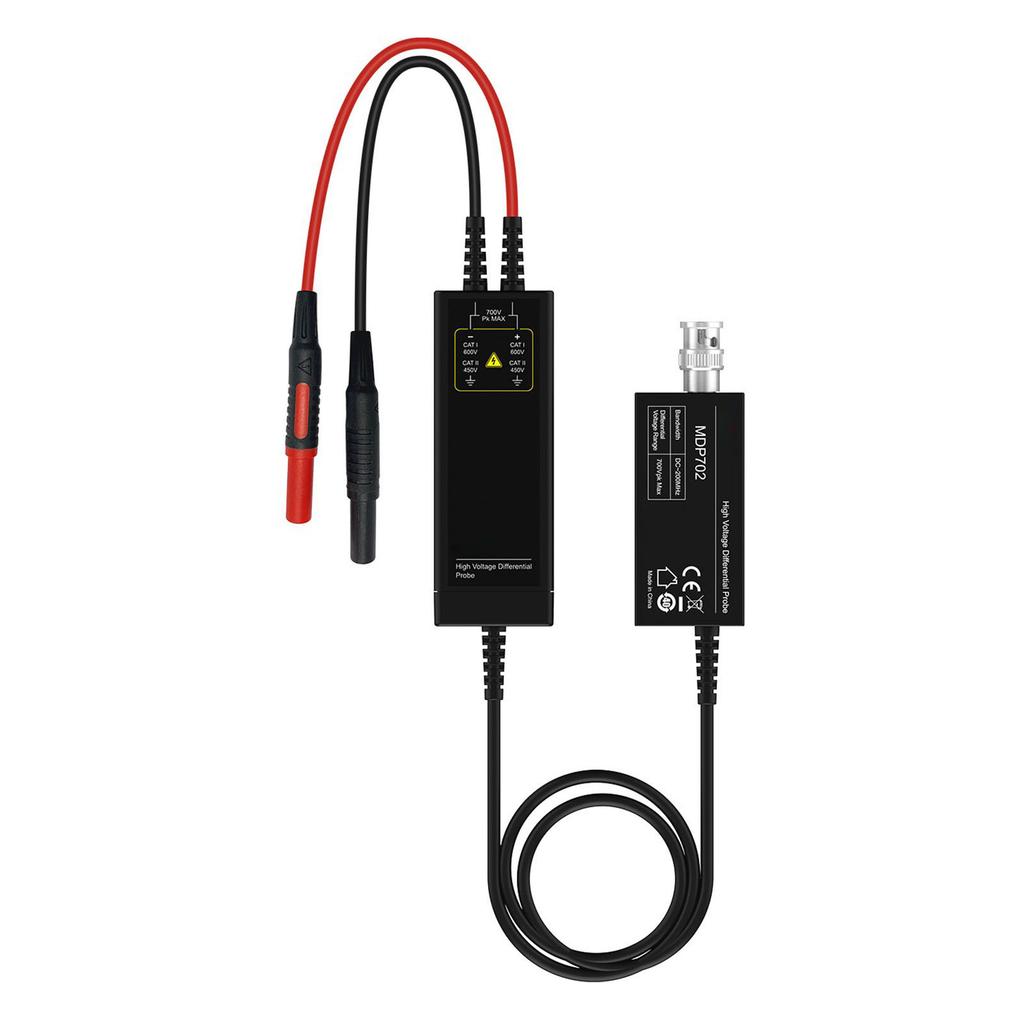

Item Type: High Voltage Differential Probe
Material: ABS
Model: MDP702
Bandwidth: 200MHz
Rise Time: less than 1.75ns
Attenuation: 20X, 200X
Accuracy: + 2percent
Maximum Input Check Voltage (DC+AC pk): 70V (20X), 700V (200X)
Maximum Voltage To Ground: CAT I 600V, CAT lI 450V
Bottom Noise Full Bandwidth:
20X: less than 0.9mVrms
200X: less than 0.4mVrms
5MHz Bandwidth Limit:
20X: less than 0.4mVrms
200X: less than 0.35mVrms
Common Mode Rejection Ratio:
DC: > 80dB
100kHz: > 60dB
10MHz: > 30dB
100MHz: > 26dB
Delay Time:
11.99ns (20X)
12.27ns (200X)
Input Impedance:
16M Ohm 1.5pF ( Differential )
8M Ohm 3pF ( Single End To Ground )
Output Voltage: less than 3V
Power: 2W
Power Supply: Type C Interface
Overload Indication: LED Alarm, Buzzer
Size Control module: Approx. 91 x 33 x 15mm 3.58 x 1.3 x 0.59in
Signal Box: Approx. 100 x 36 x 20mm 3.94 x 1.42 x 0.79in
Input Line Length: Approx. 8cm 3.15in ( Manual measurement will have a small error)

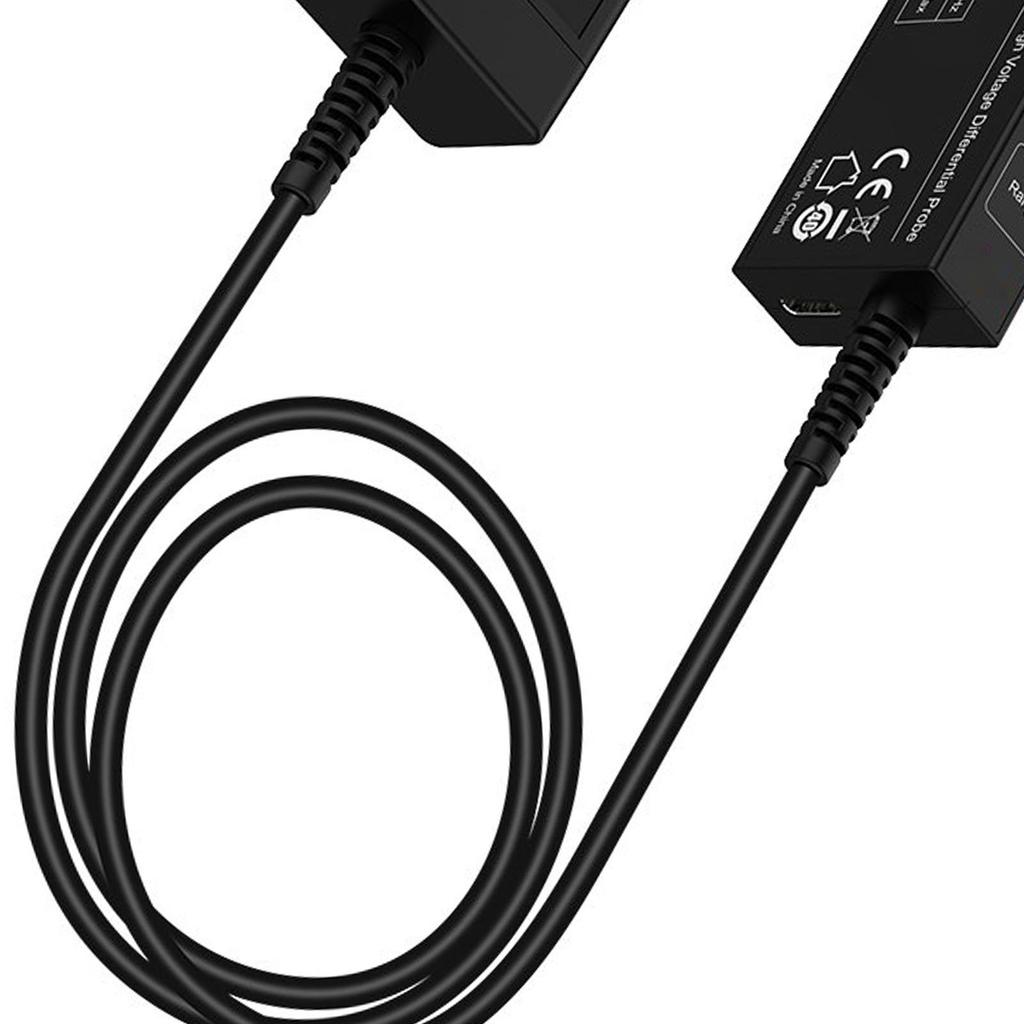

Output Line Length: Approx. 120cm 47.2in ( Manual measurement will have a slight error)
Temperature:
Working Condition: 0 celsius 40 celsius
Non Operating Condition: 30 celsius 70 celsius
Humidity Working Condition: 5percent 85percent RH (0 celsius 40 celsius )
Non Working Condition: 5percent 85percent RH ( less than 40 celsius ), 5percent 45percent RH (40 celsius 70 celsius ).
Package List:
1 x Probe Main Unit2 x Crocodile clips1 x Type C cable1 x Manual2 x Retractable IC Clips1 x Plug
