Feature:
1. MAIN PURPOSES: OTDR is used to evaluate FTTx and access network construction and maintenance, identify fiber breakpoints, measure cable length, and calculate relative optical power loss
2. PORTABLE AND DIMMABLE: The optical fiber tester is compact and easy to carry around, with smooth control, colorful soft light screen, and adjustable screen brightness
3. SCREEN AND WAVELENGTH: OTDR mulit function tester with 3.5in HD full touch screen, support multi touch, interactive friendly. Working wavelength for 1550nm, support test with light
4. SMALL TEST BLIND AREA: The optical time domain reflectometer has a maximum test range of 80km and provides intelligent link analysis to display analysis events directly
5. WITH BAG: Optical fiber tester equipped with a storage bag for easy storage, portability and access, and also prevent damage and loss
Specification:

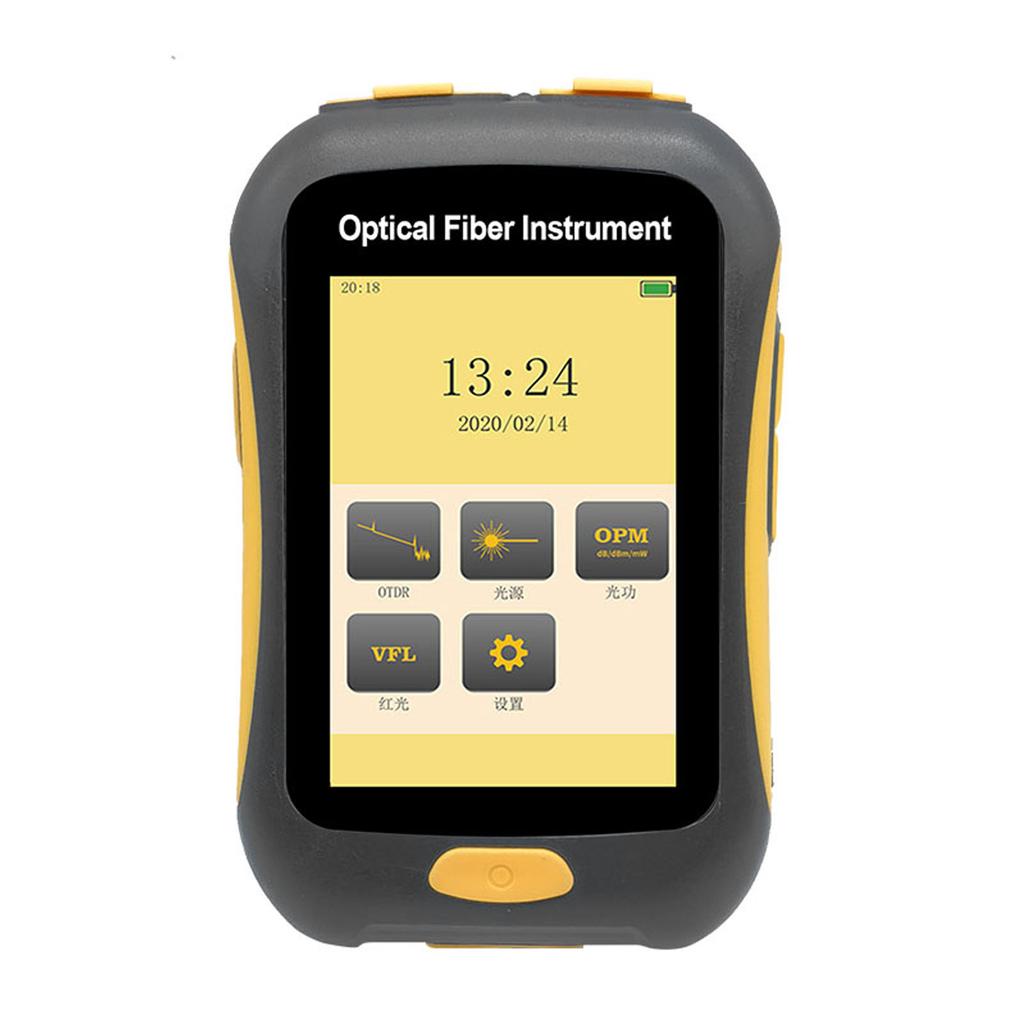

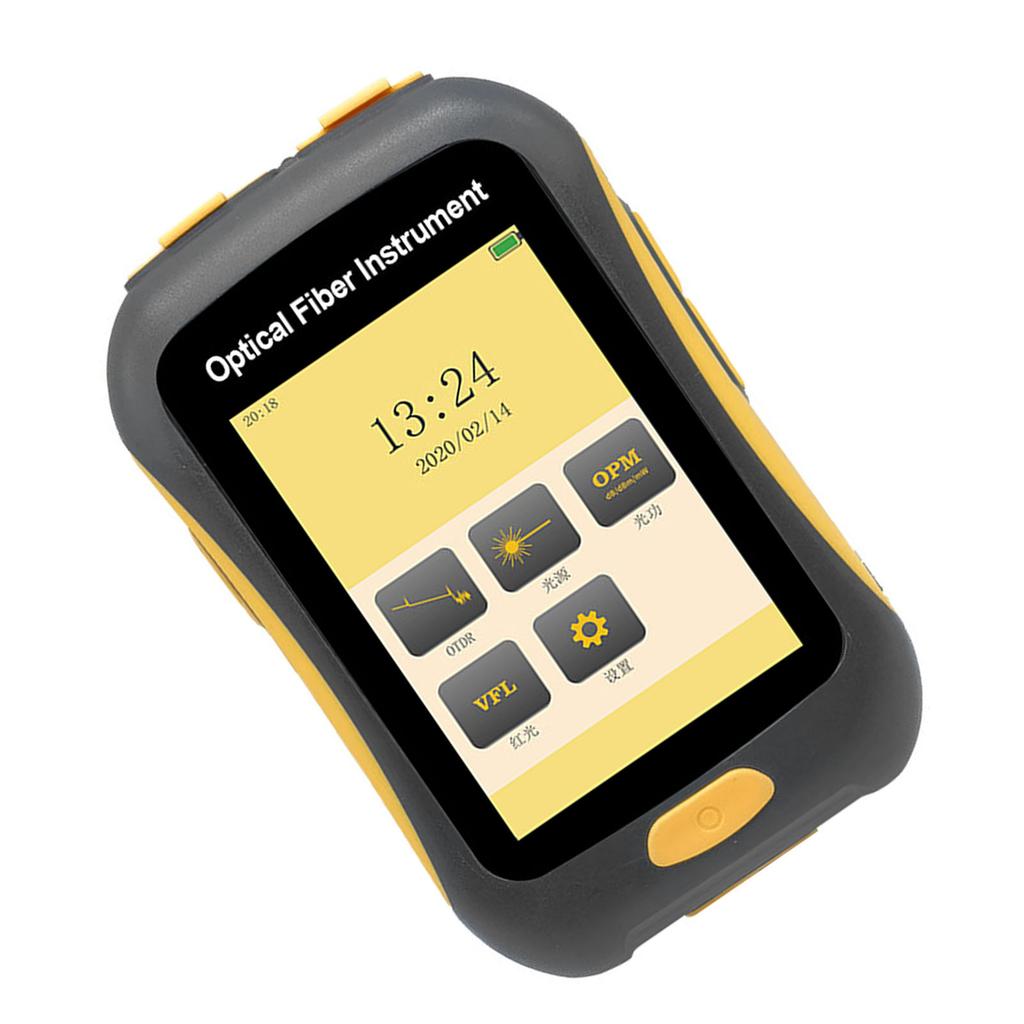

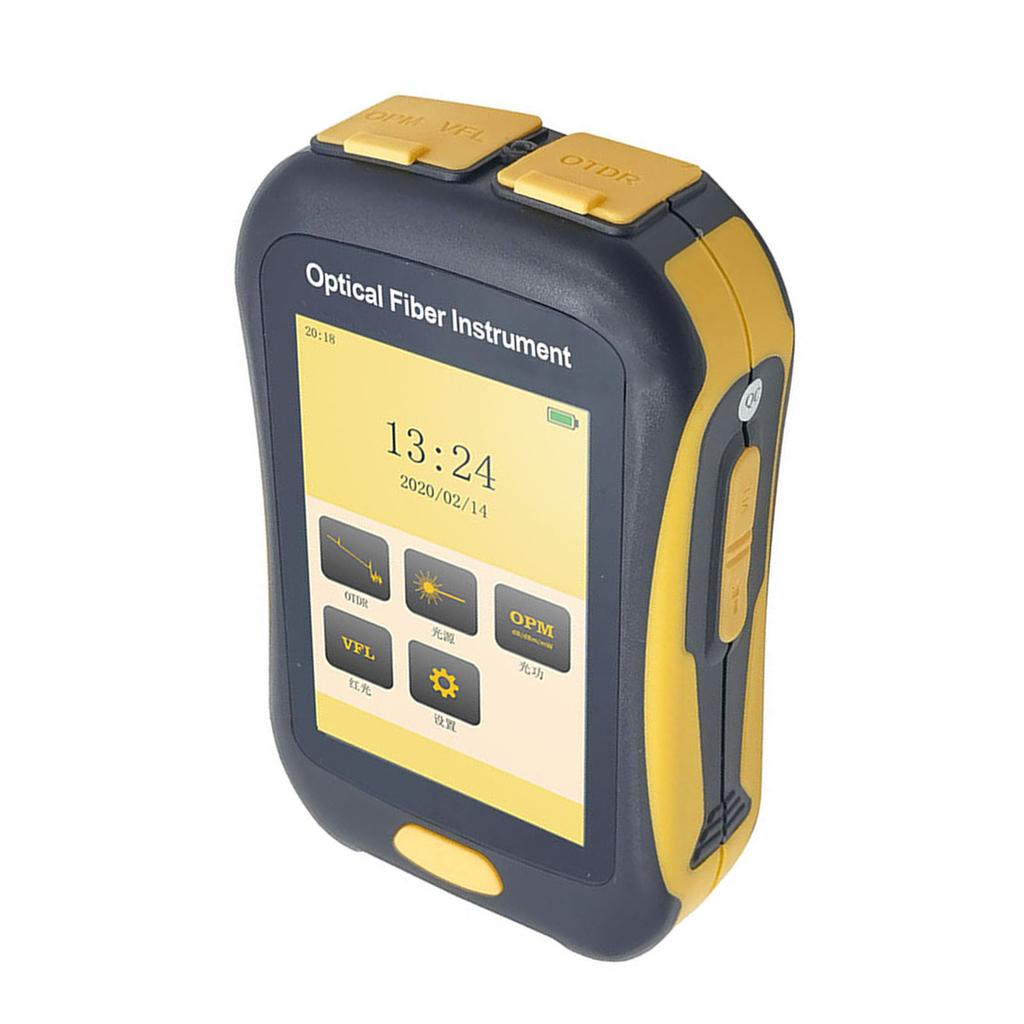

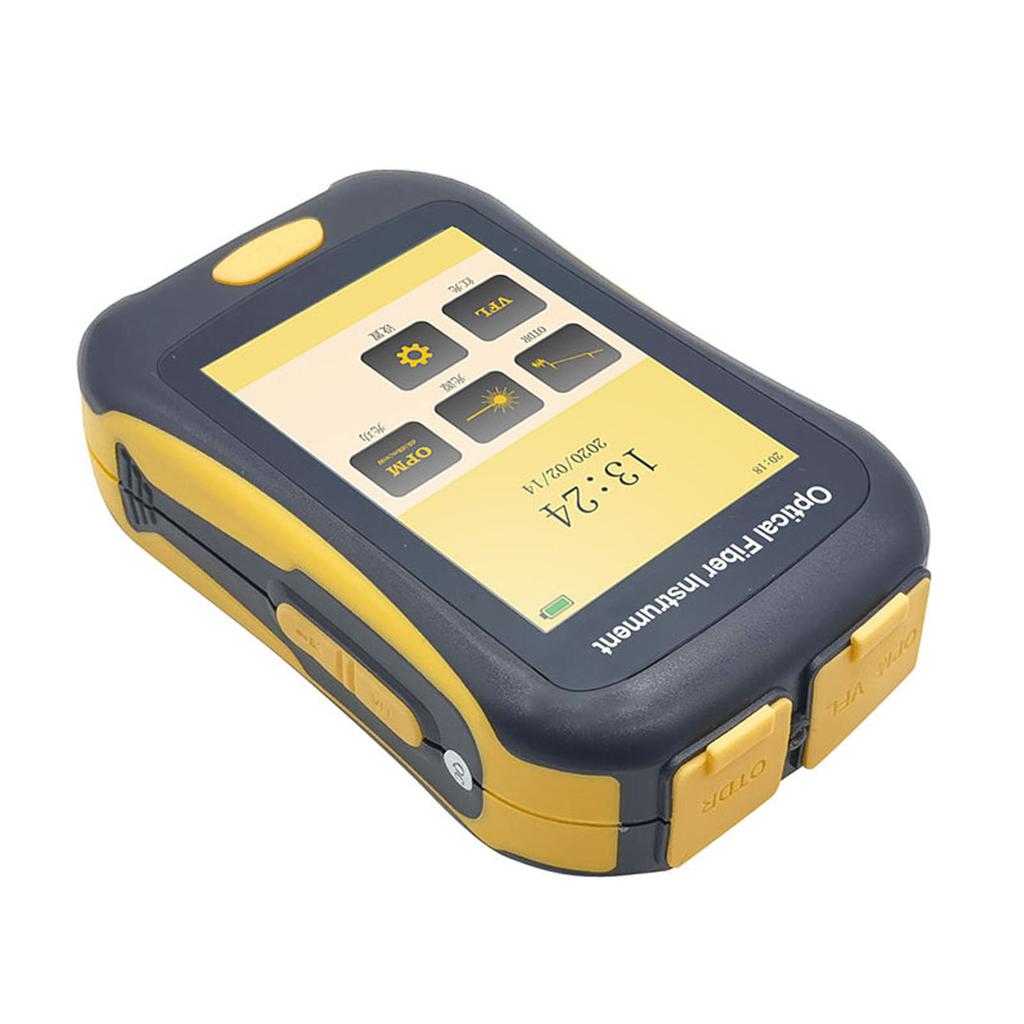

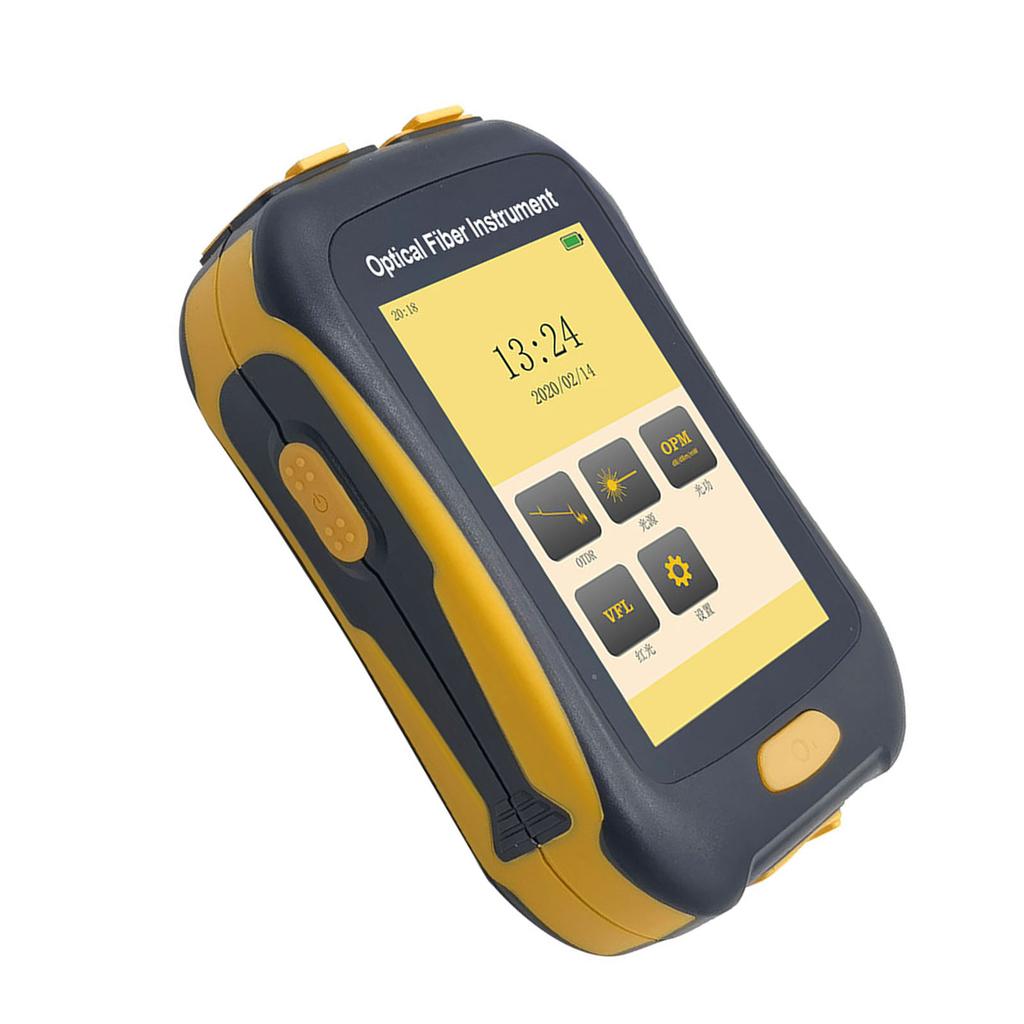

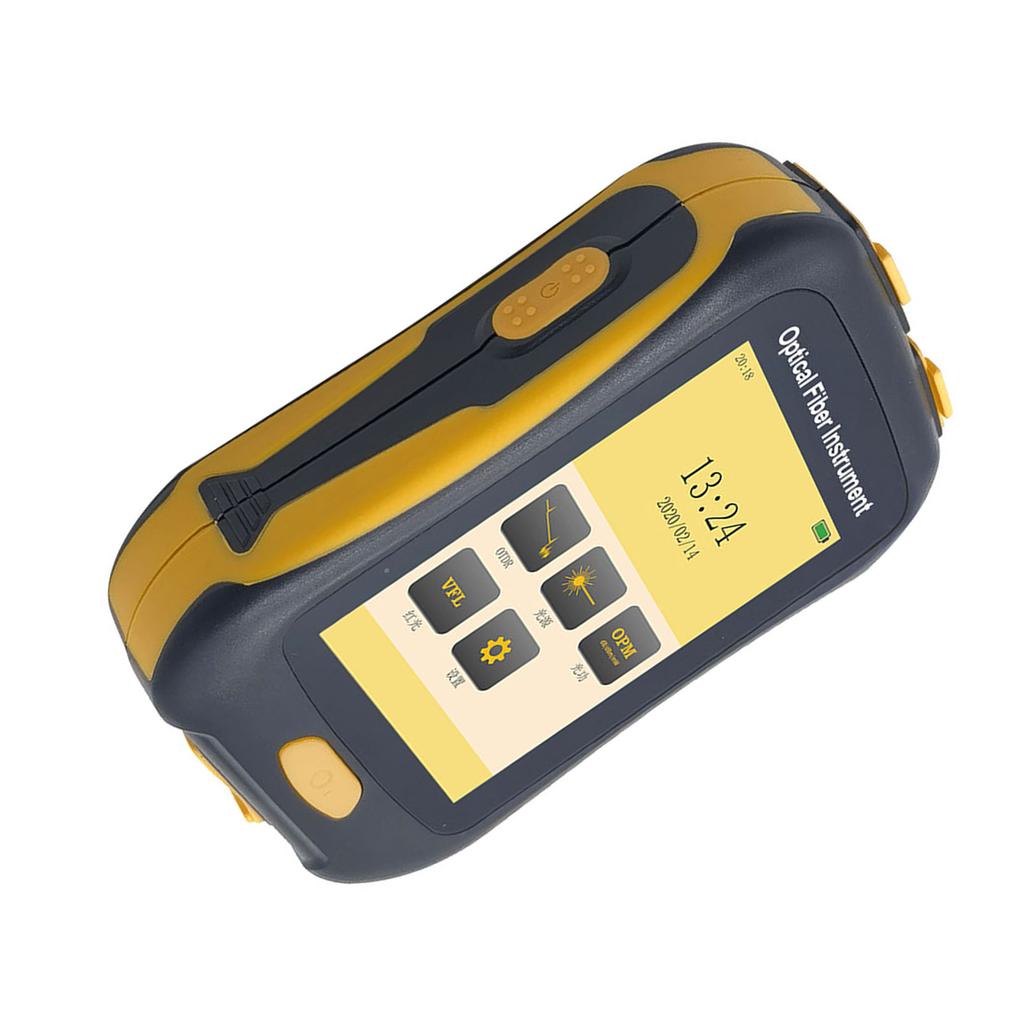

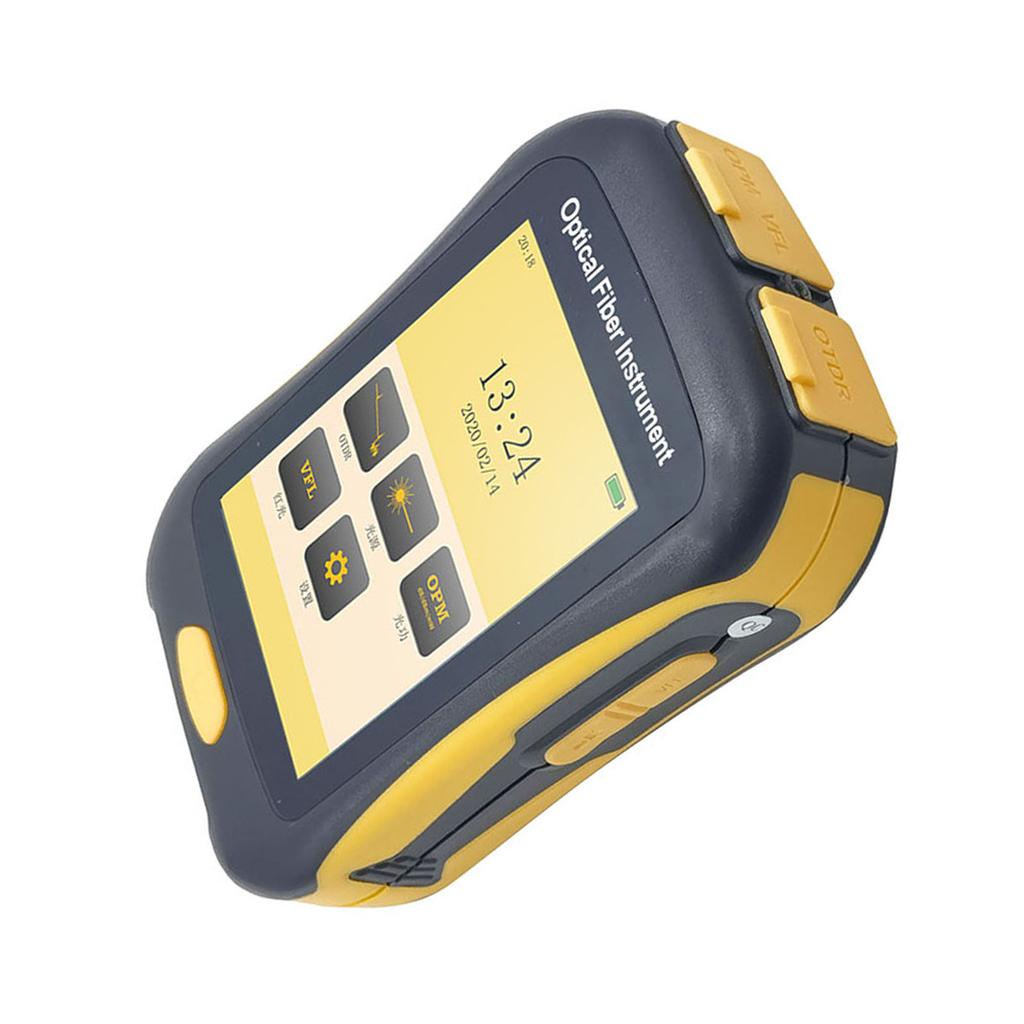

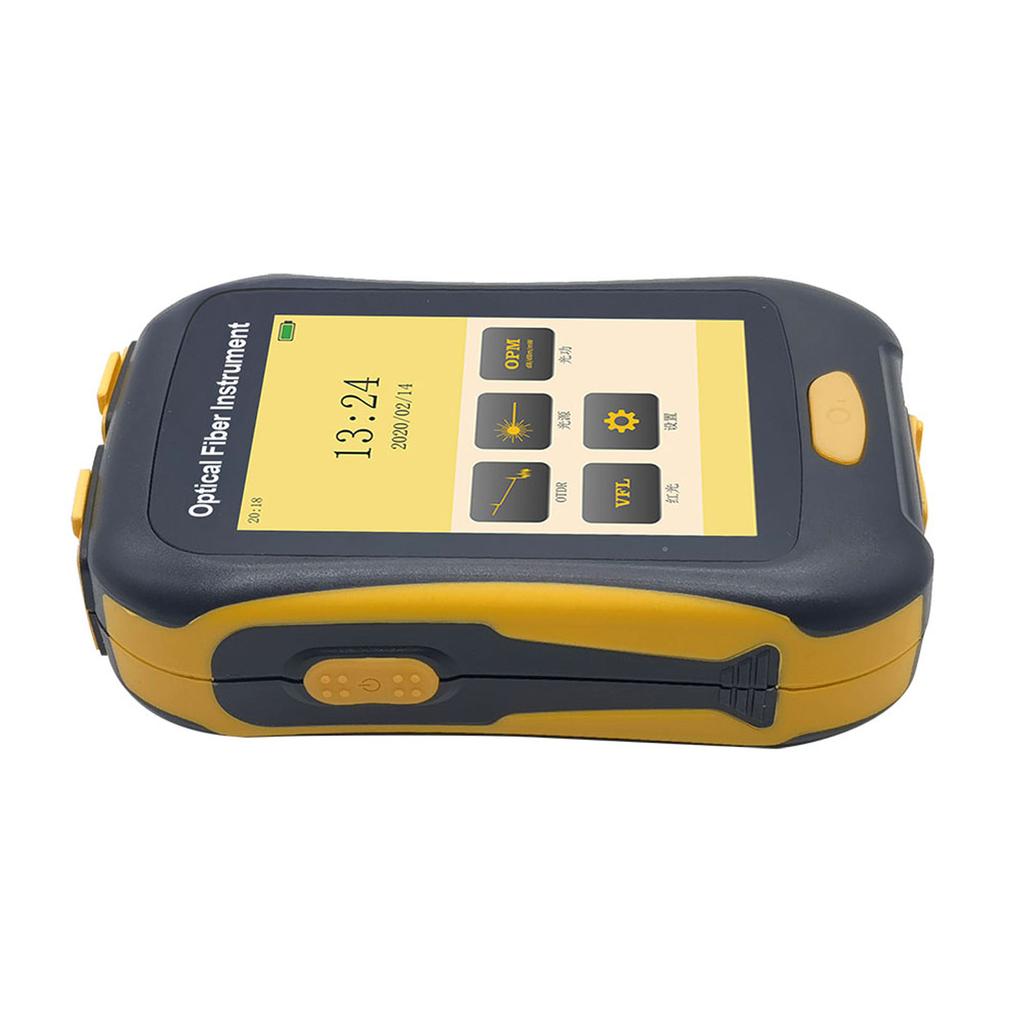

Item Type: OTDR Optical Fiber Tester
Model: NK2600
Universal Index:
Display: 3.5in color TFT LCD screen
Resolution: 320x480 Pixels
External Interface: Type C
Power Supply: Built in polymer lithium battery capacity 2200mah
Optical Time Domain Reflectometer:
Wavelength Single Mode: 1550nm
Dynamic Range: 20dB
Event Blind Area: 5meter
Attenuation Blind Area: 15meter
Test With Light: Support (< 5dBm 1310nm, 1490nm, 1577nm)
Distance Range: 0.2km, 0.5km, 1km, 2km, 4km, 8km, 16km, 32km, 40km, 60km
Testing Pulse Width: 10ns, 30ns, 50ns, 100ns, 300ns, 500ns, 800ns, 1us, 2us, 3us, 5us, 8us
Loss Resolution: 0.01dB
Sampling Number: 4k
Optical Connector: SC, PC
Storage: 200 Pieces
Stable Light Source:
Wavelength: 1550nm+ 25nm
Optical Output Power: more than 5dBm
Modulation Mode: CW, 270Hz, 330Hz, 1kHz, 2kHz
Optical Output Port: OTDR port
Optical Power Meter:
Wave Length: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
Measuring Range: 50 +26dBm
Measurement Accuracy: + 5percent
Measurement Frequency: CW, 270Hz, 330Hz, 1kHz, 2kHz
Measuring Function: Threshold judgment, maximum and minimum value tracking
Optical Connector: Universal connector FC, SC, ST
Visual Fault Location:
Wavelength: 650nm+ 20nm
Optical Output Distance: more than 10km
Modulation Mode: CW, 1Hz, 2Hz
Optical Connector: Universal connector.

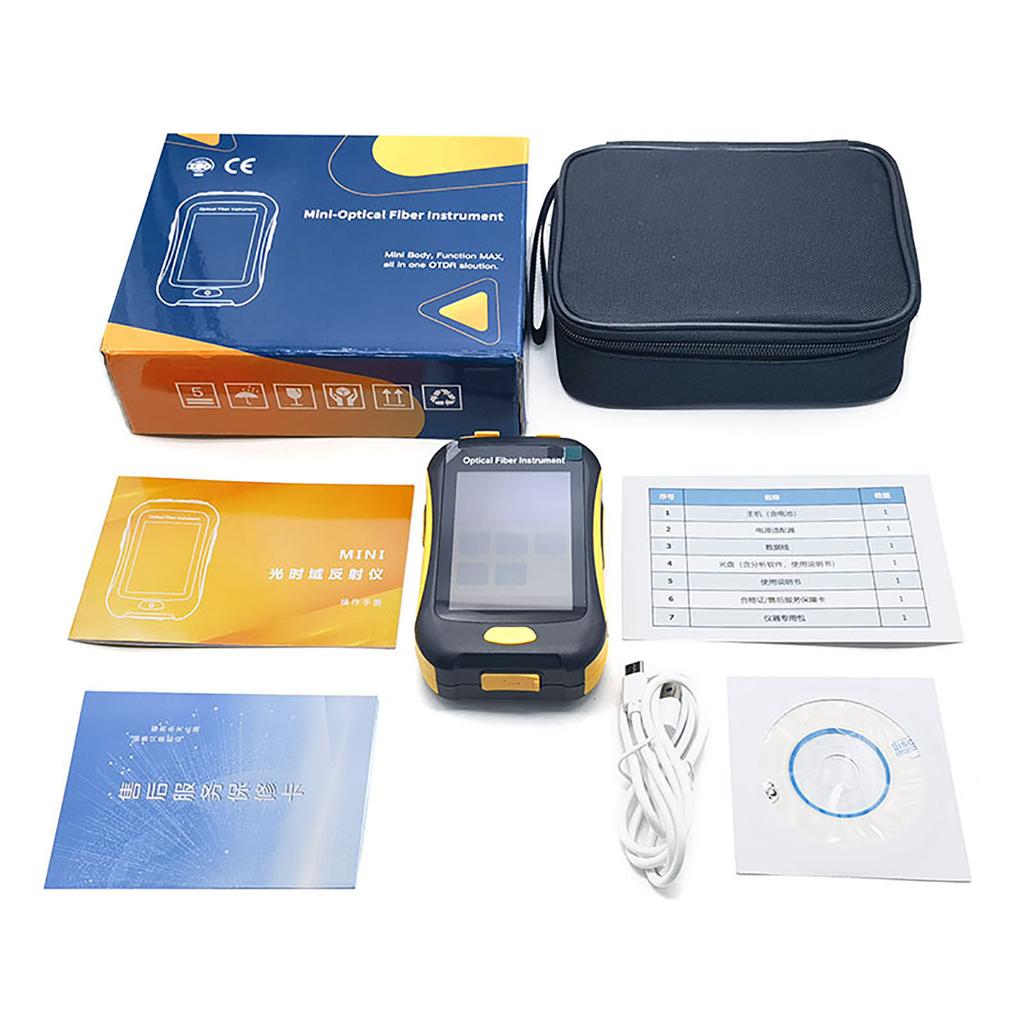

Package List:
1 x Host1 x USB Cable1 x Plug1 x Storage Bag1 x User Manual1 x CD
