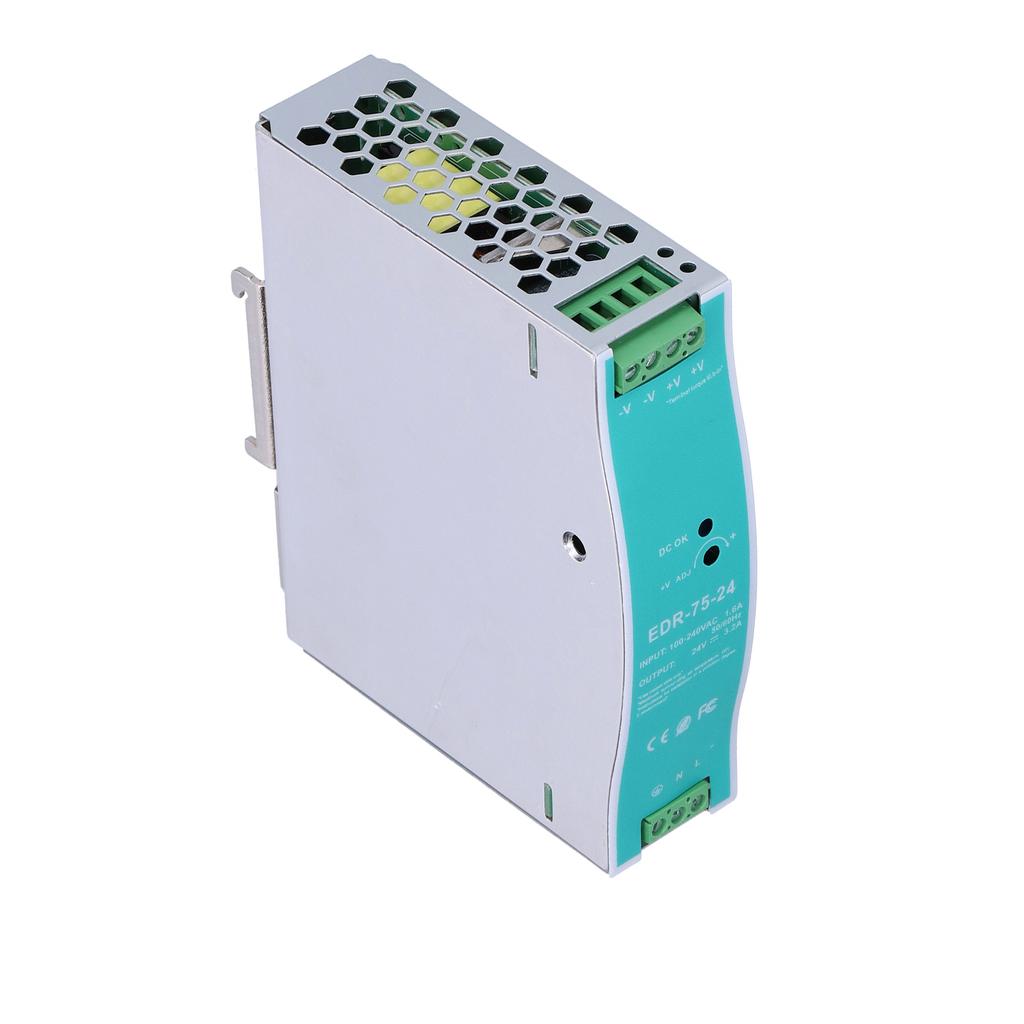

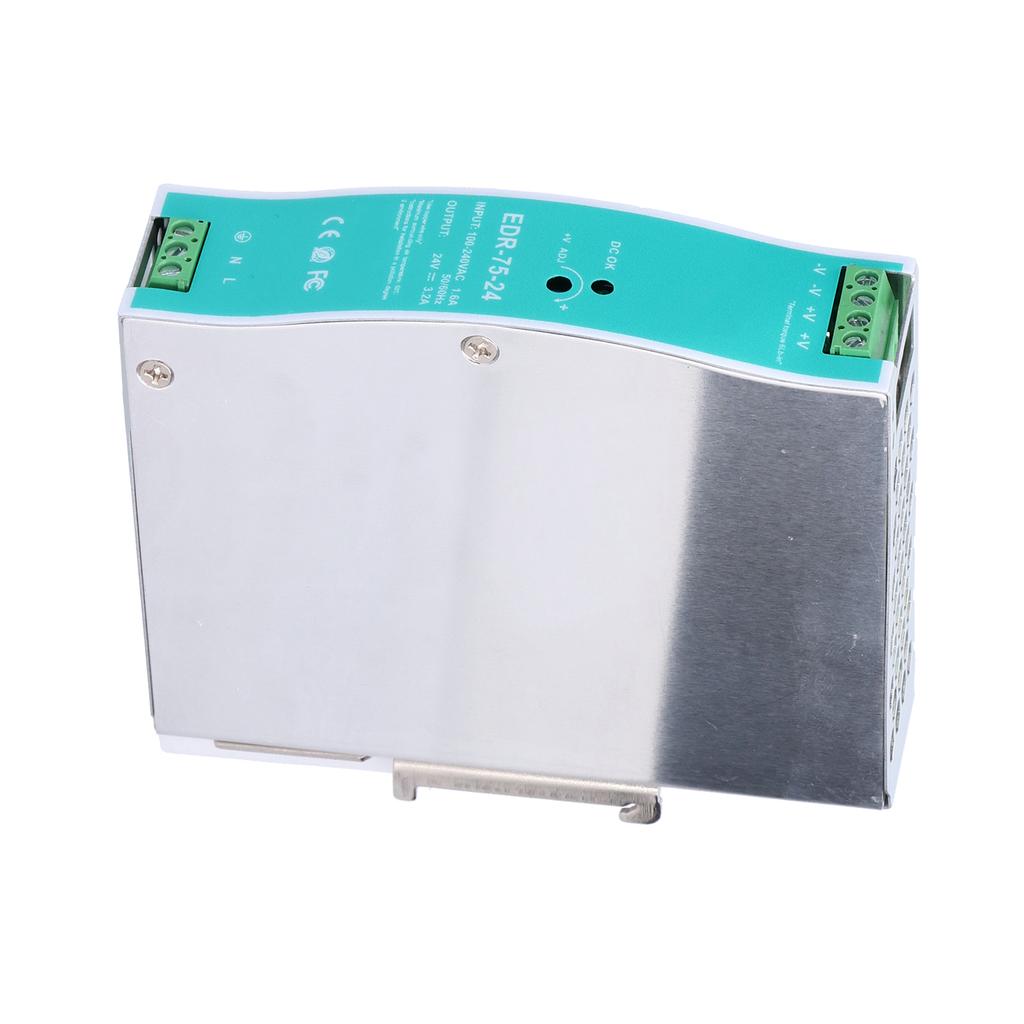

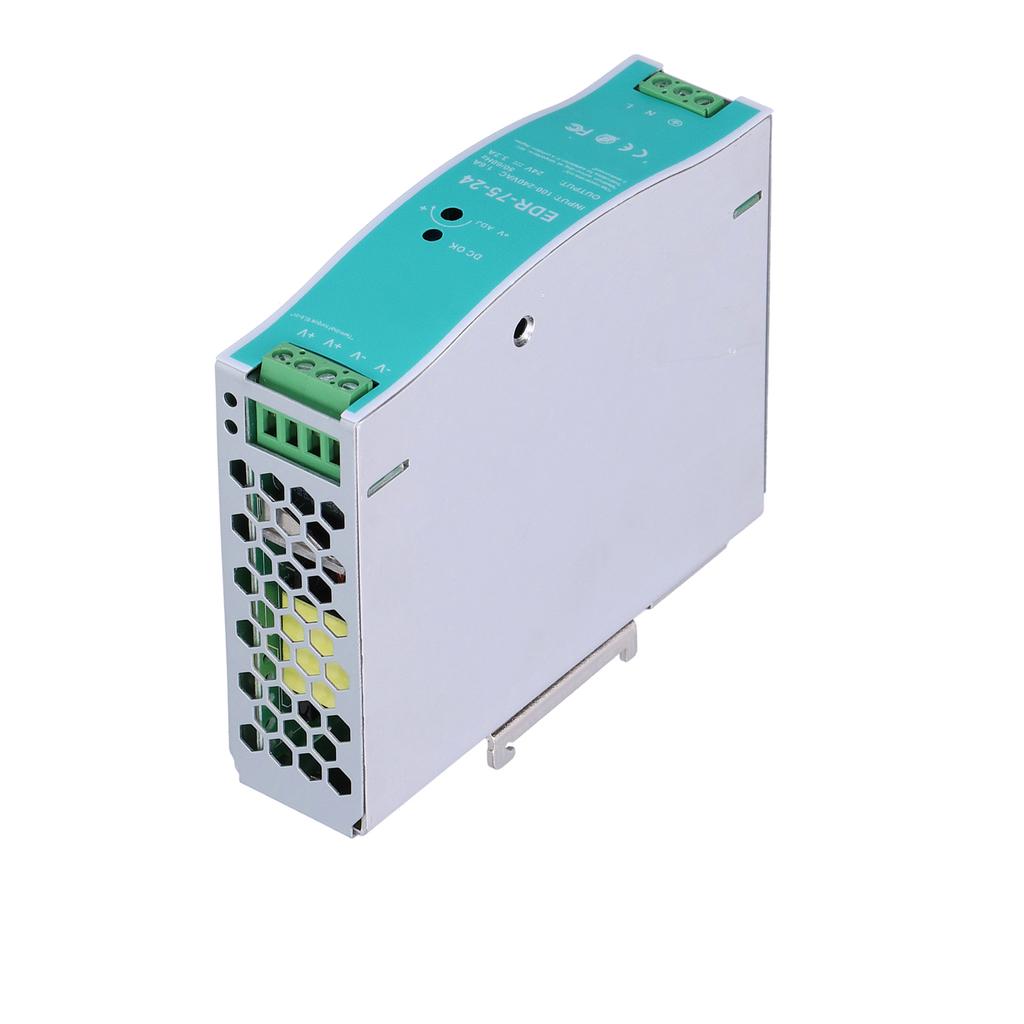

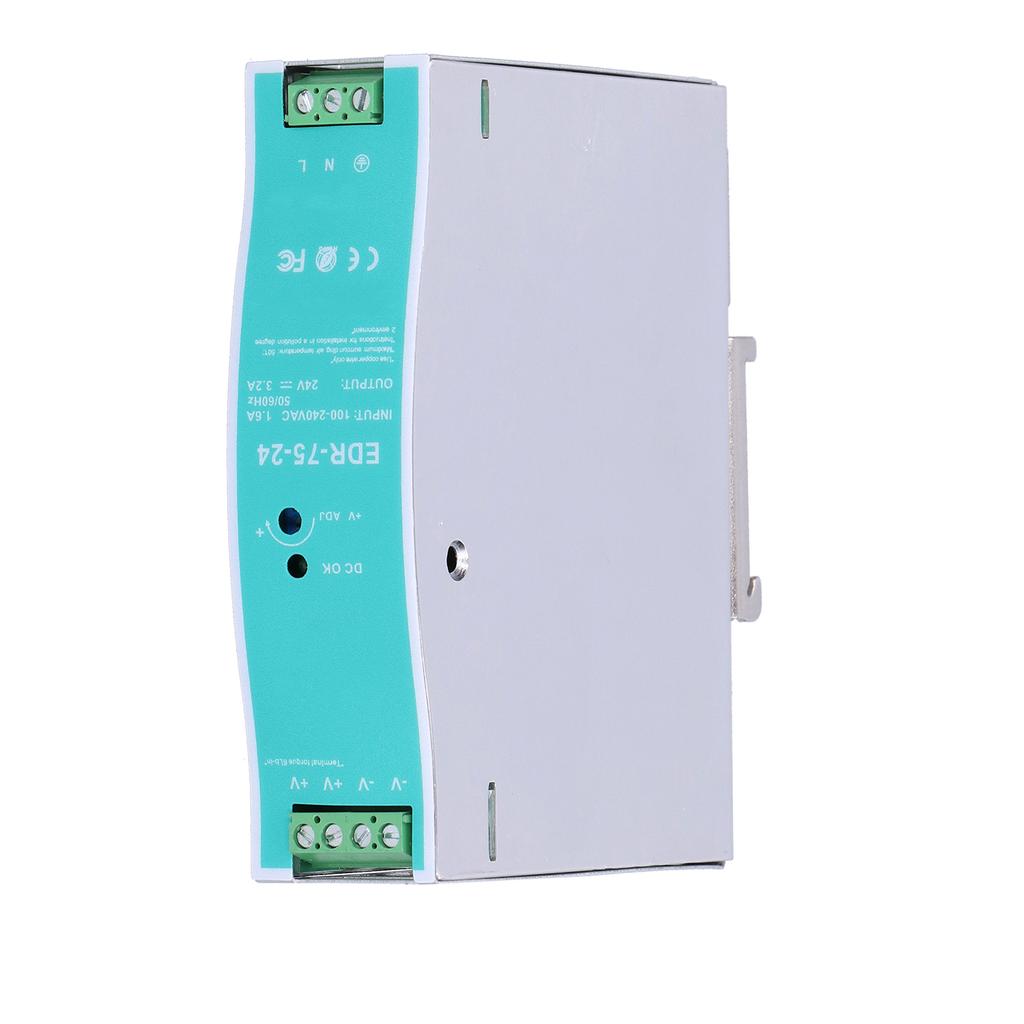

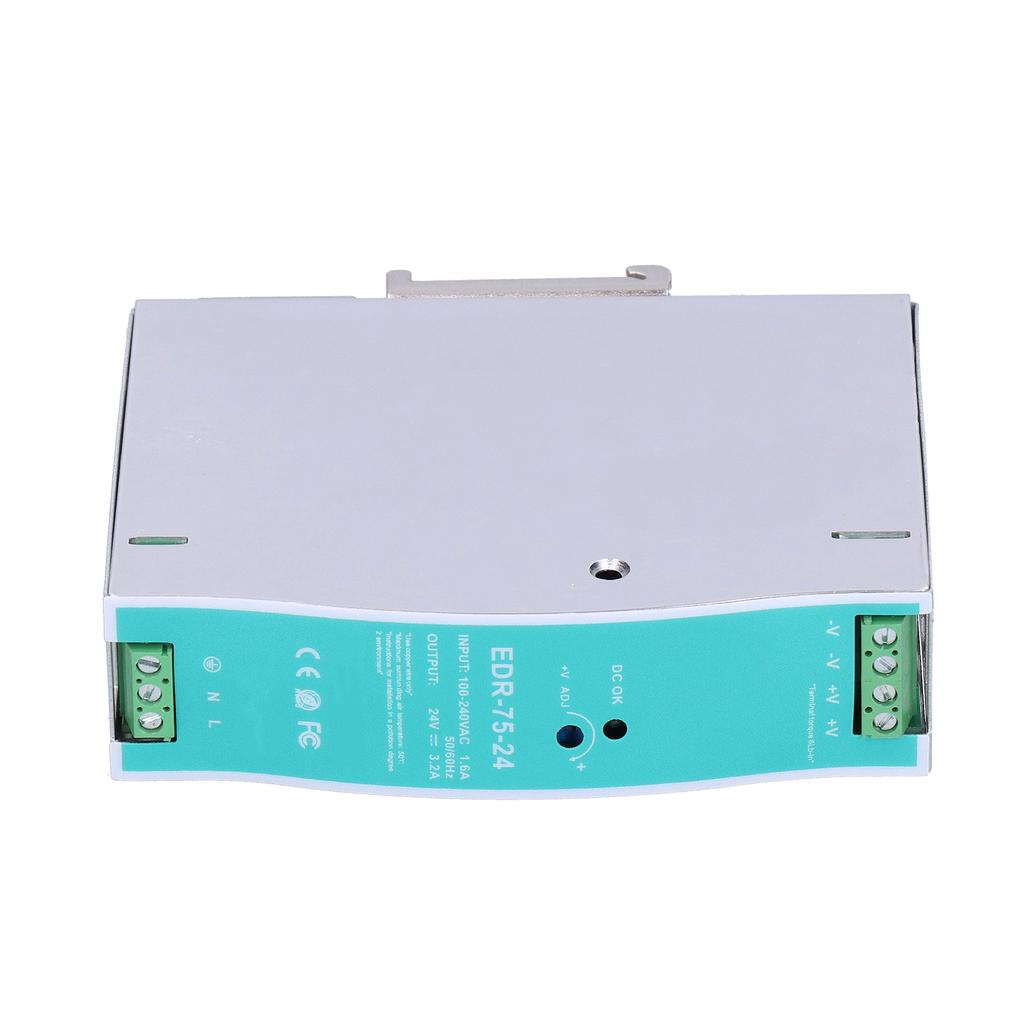

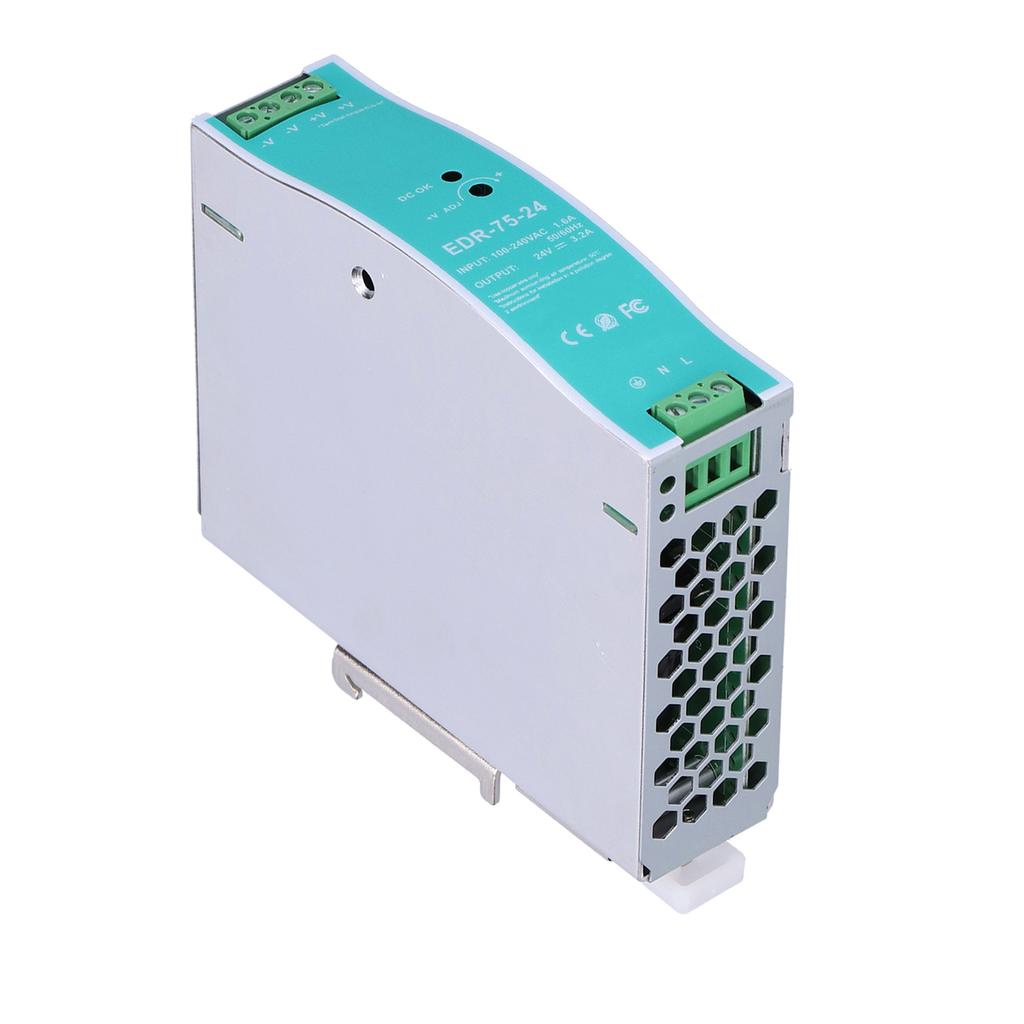

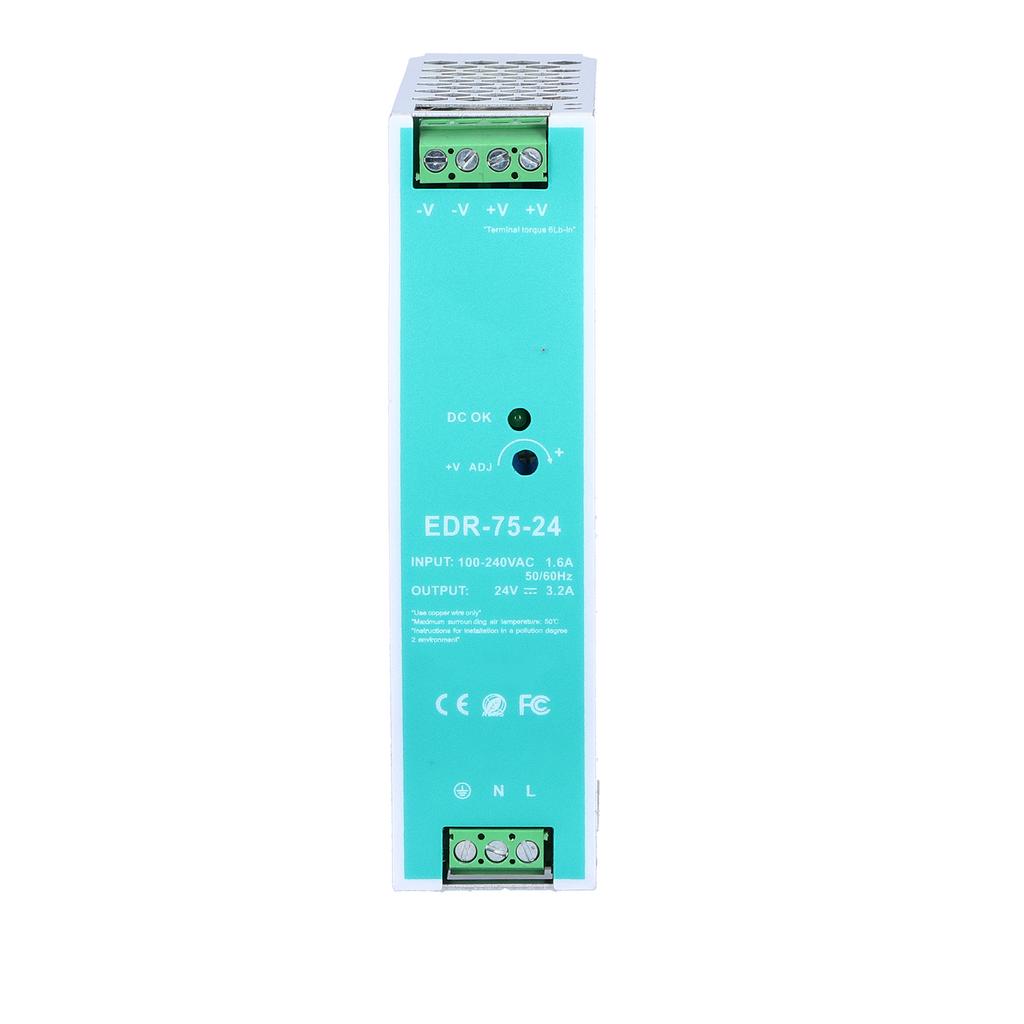

Rail Power DinRail Industrial Switching Supply Electrical DC 24V AC 100240V EDR7524

Feature: 1. With all‑copper transformer, have strong conductivity, not easy to generate heat. 2. The voltage stabilizer is smaller than traditional transformer,and more stable than the traditional transformer, safe to use. 3. Beehive design, ventilation and heat dissipation, fast heat dissipation in the air, long‑lasting operation. 4. Easy to install with mounting holes on the back, convenient to install and have a long service time. 5. Have multiple protection functions, such as over current protection, over voltage protection, overload protection, short circuit protection. Specification: Item Type: Rail Power Model: EDR 75 24 Output: DC Voltage: 24V Rated Current: 3.2A Current Range: 0 3.2A Rated Power: 76.8W Ripple and Noise: 120mVp p Voltage Adjustment Range: 24 28V Voltage Accuracy: + 1.0percent Linear Adjustment Rate: + 0.5percent Load Regulation Rate: + 1.0percent Start up and Rise Time: 500ms, 70ms 230VAC 500ms, 70ms 115VAC (at full load) Holding Time (typ): 36ms 230VAC 32ms 115VAC (at full load) Input: Voltage Range: 100 240VAC Frequency Range: 50 60Hz Efficiency (Typ): 86percent AC Current (Typ): 1.45A 115VAC 0.9A 230VAC Inrush Current (Typ): Cold start 20A 115VAC 40A 230VAC Leakage Current: <1mA 240VAC. Package List: 1 x Rail Power Note: Connect according to the diagram, and check again if the wiring is correct before turning on the power.
