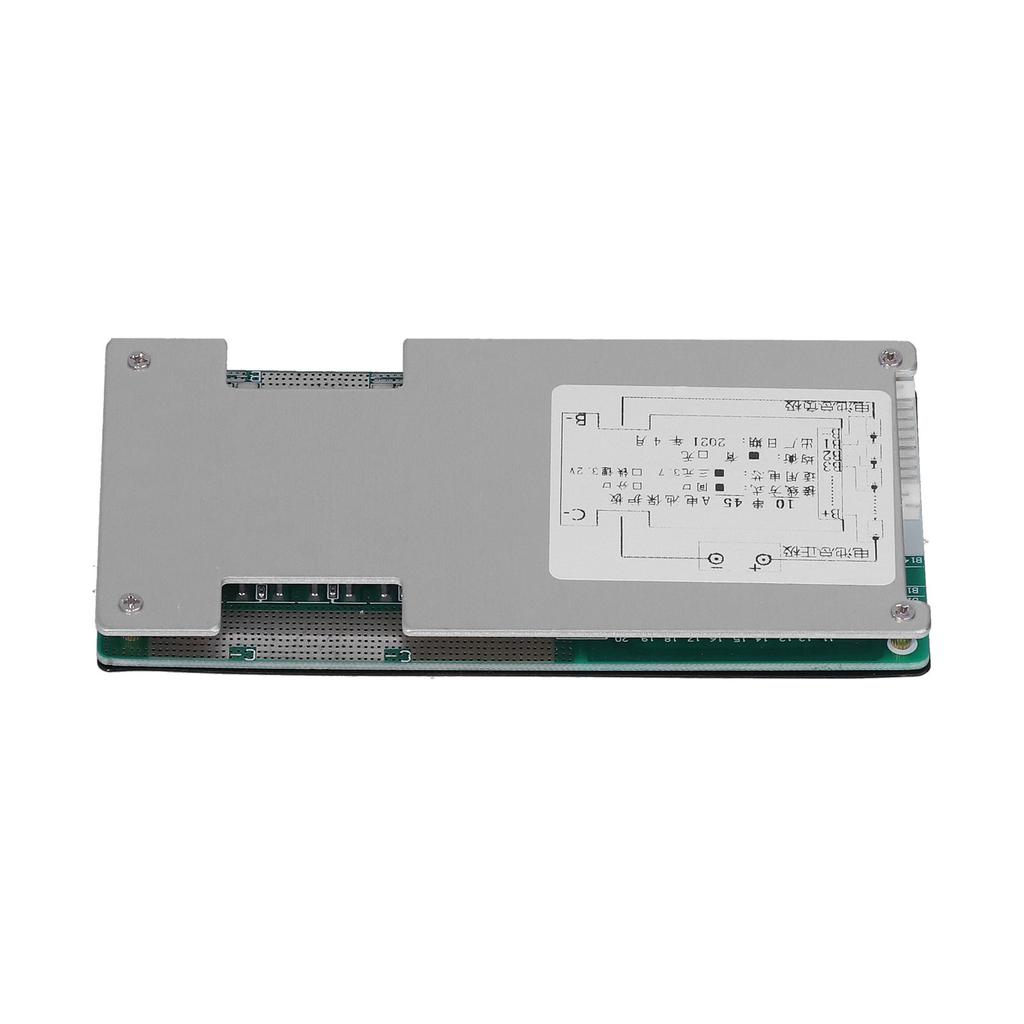

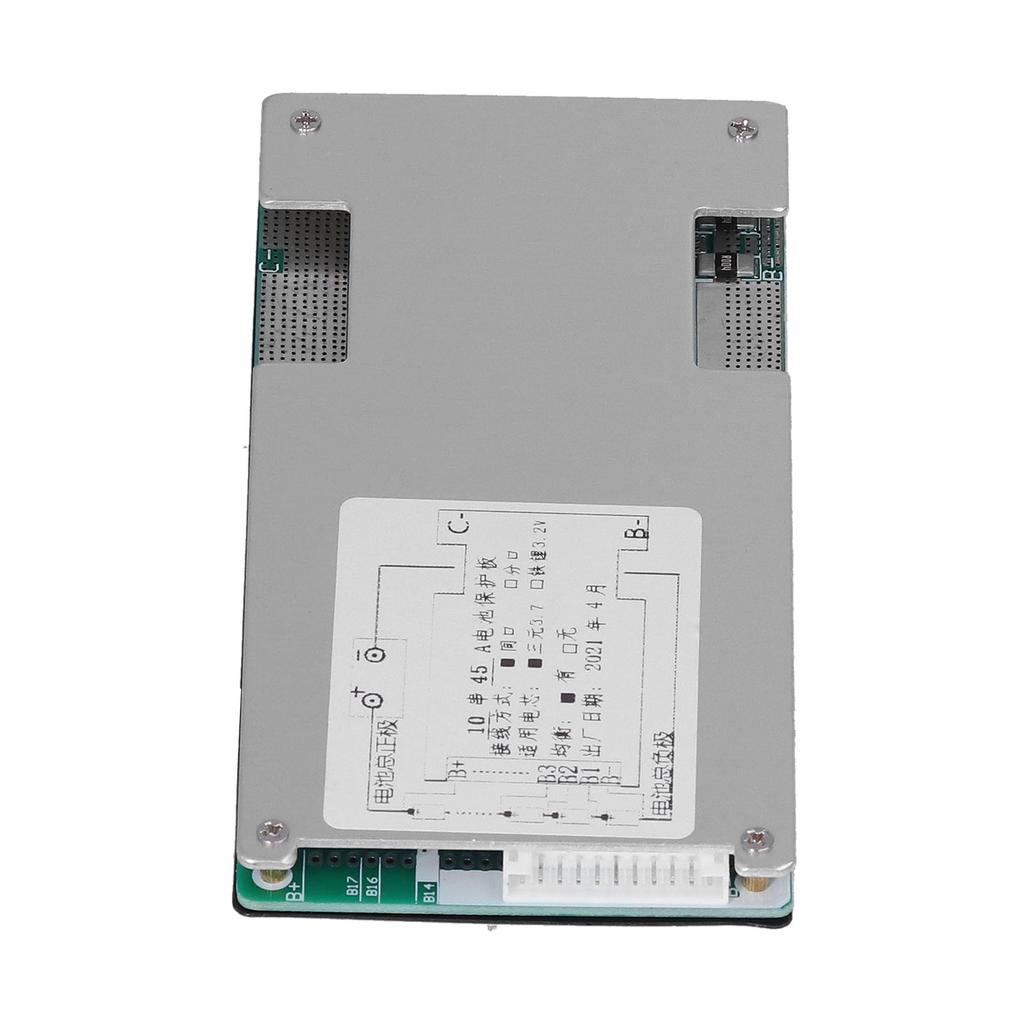

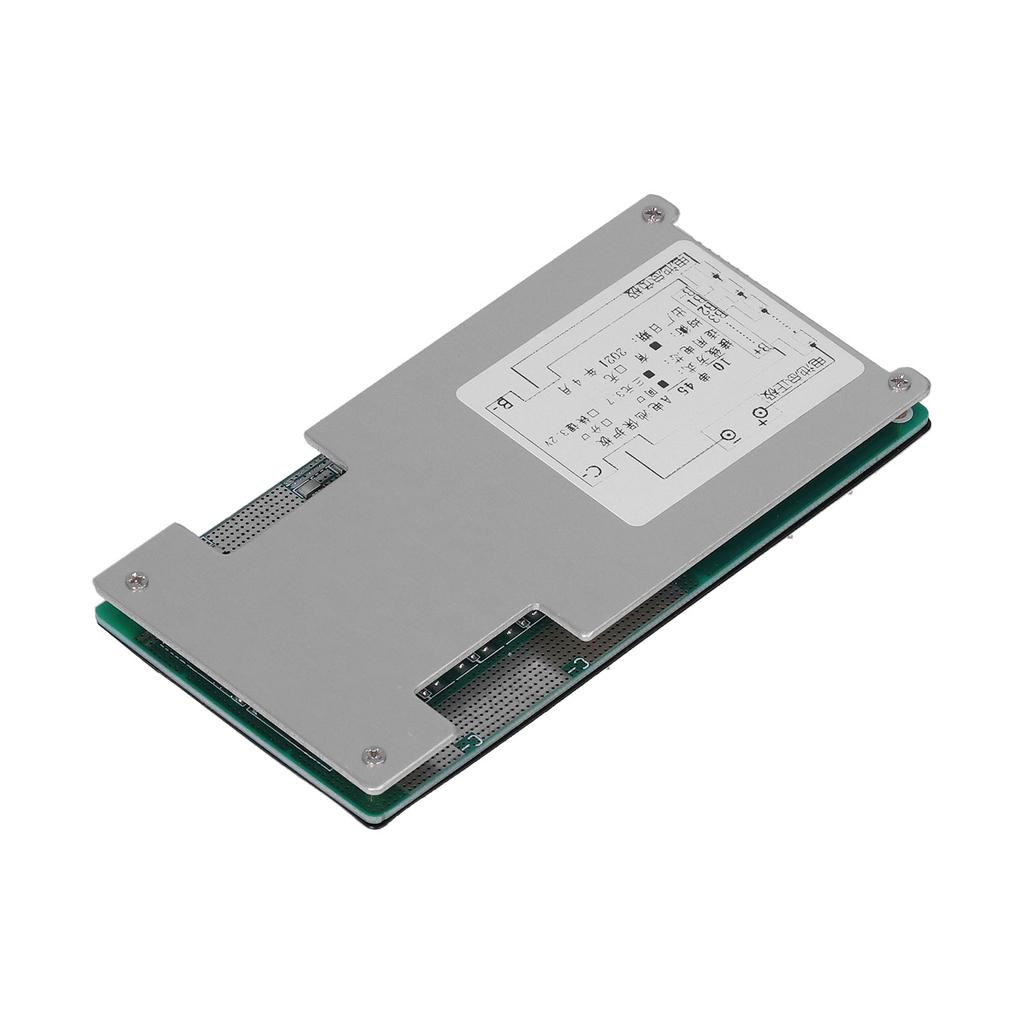

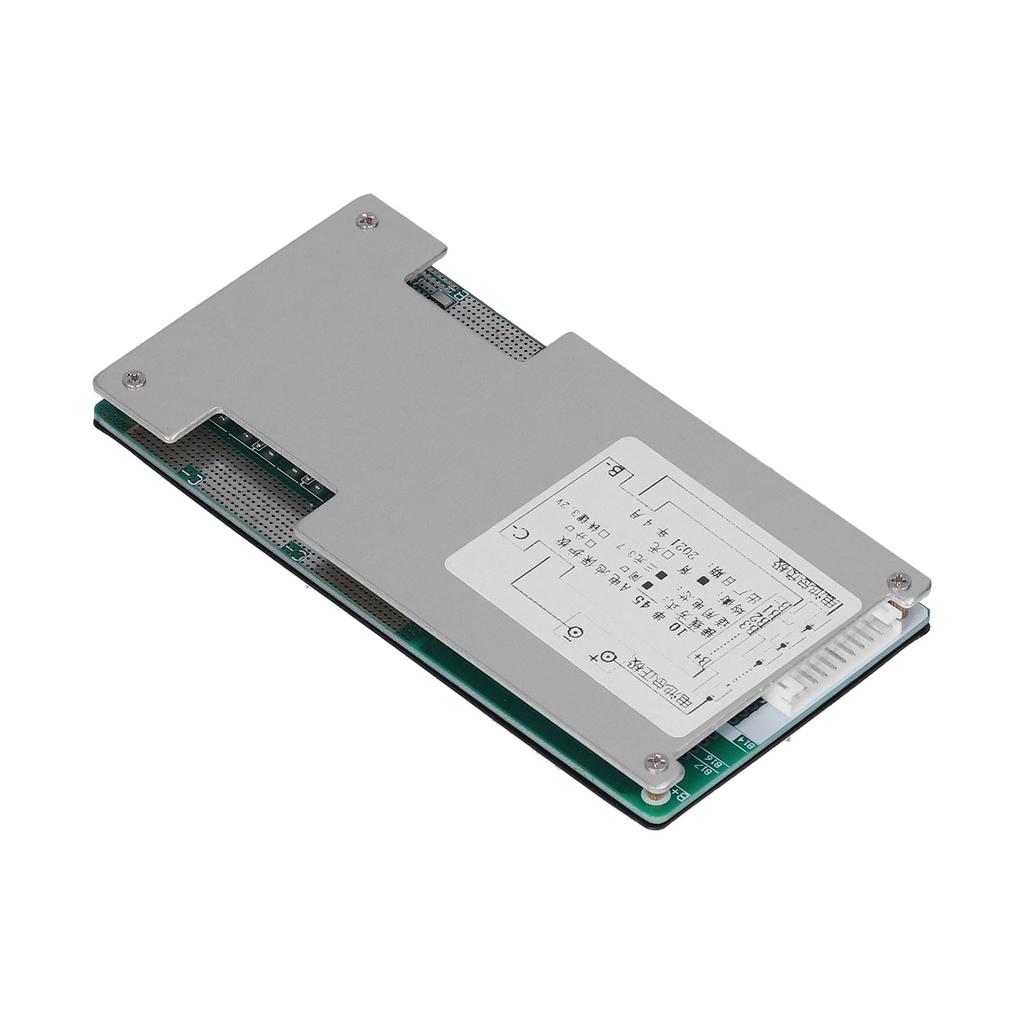

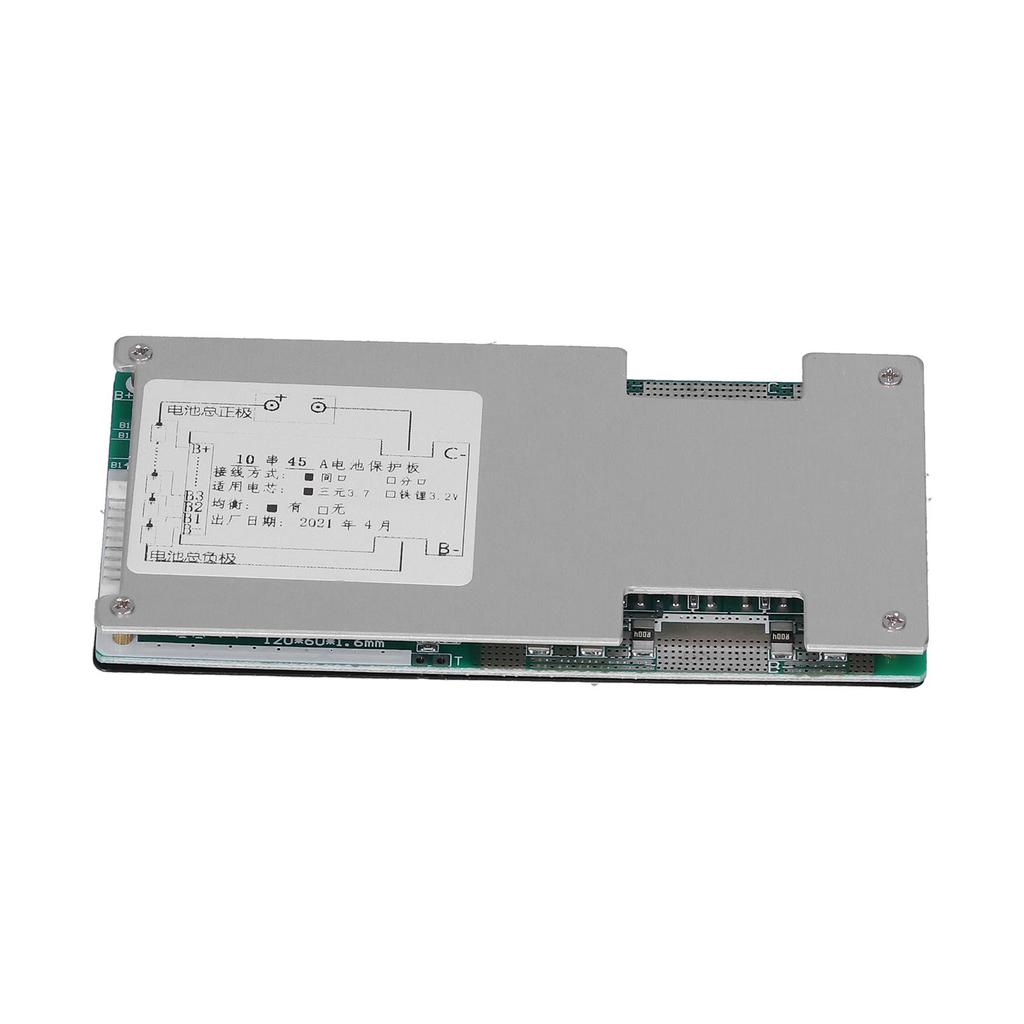

Battery Charger Board 45A Lithium Battery Charging Controller with Collection Cable for Overcharge Discharge Protect

Feature: 1. Adopt heat sink anodizing technology to stably and safely dissipate the temperature to the outside and protect the battery. 2. Multi protection by brushing with three proof paint, using high quality thermal silica gel to quickly dissipate heat. 3. Balance charge, balance the characteristics of each battery in the battery pack, and extend battery life. 4. This Battery Protection Board provides stable various protective functions for charging and discharging of the battery. 5. The board can provide functions such as accurate overcharge protection, over discharge protection, over current protection. Specification: Item Type: Battery Charger Board Material: Aluminum Alloy Charging Voltage: Ternary 42V Charging Current: less than 15A Discharge Voltage: 36V Discharge Current: 45A . Package List: 1 x Battery Charger Board1 x Collection Cable Note: 1. First connect the B line to the battery negative terminal (the B line must be soldered with a short wire), and then connect the flat cable (before connecting the flat cable, be sure to unplug the flat cable from the board).2. Start wiring from B, connect B to the total negative electrode of the battery, connect the second cable B 1 to the positive electrode of the first string of batteries, connect the third cable B 2 to the positive electrode of the second string of batteries, and connect the fourth cable B 3 is connected to the positive electrode of the third series of batteries,and so on.3. Finally, measure whether the total battery voltage is equal to the output voltage of the protection board, and the protection board works normally if it is equal.
