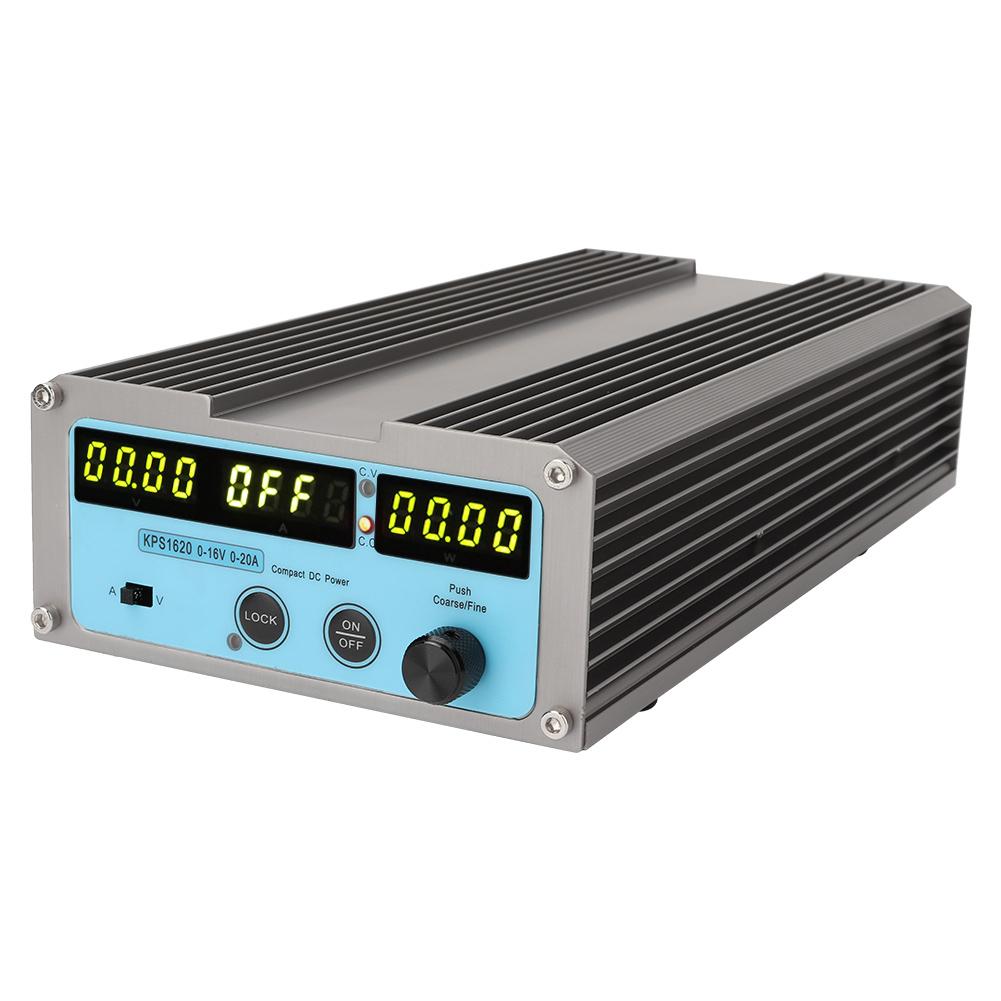

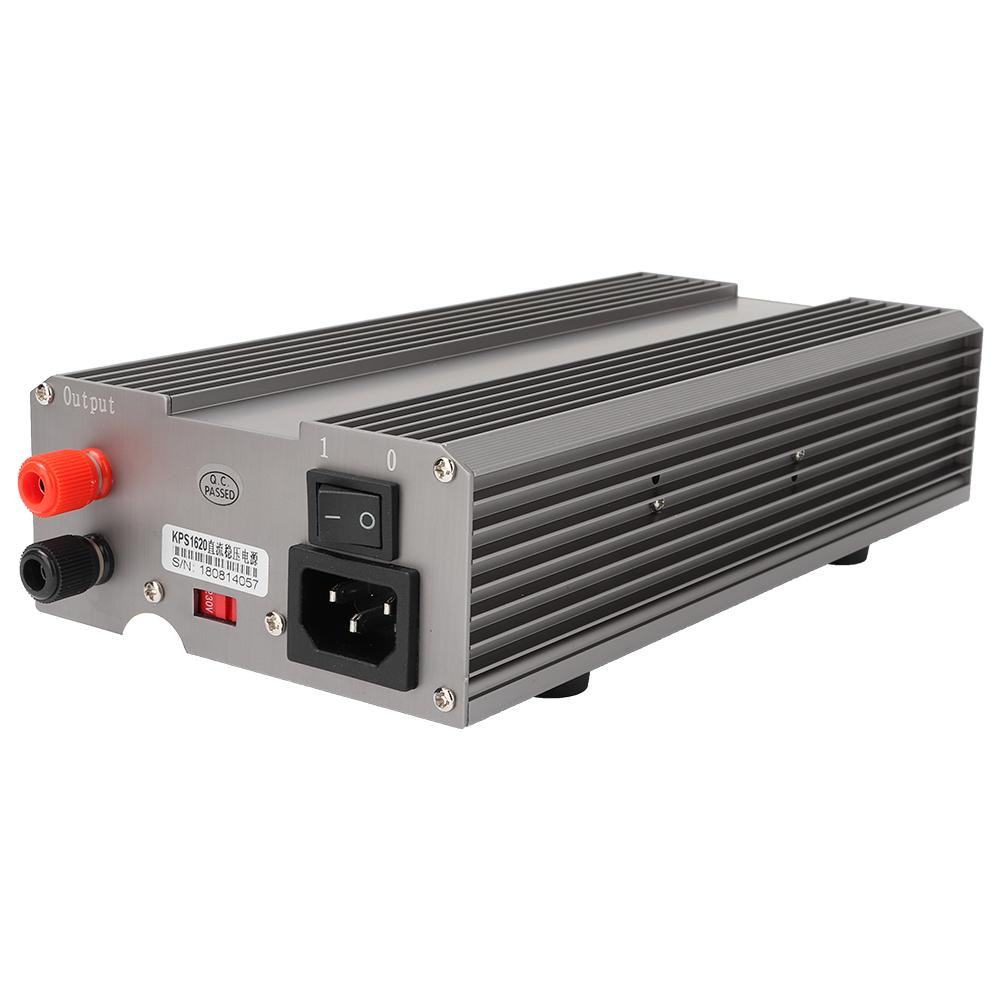

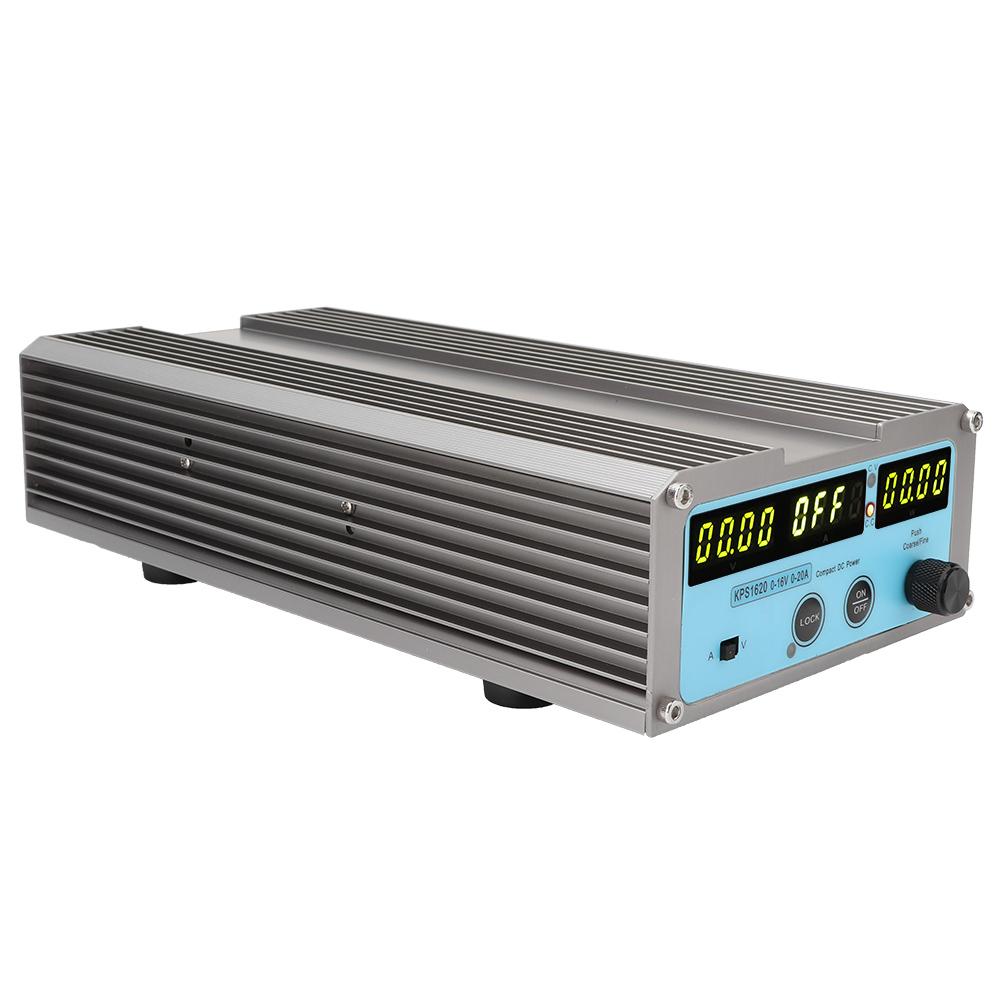

0 16V 0 10A 20A Output Adjustable Digital DC Power Supply 4 digital Display

Feature: The product is controlled by intelligent MCU chip with high precision and high intelligence. The whole product is made of aluminium shell, which has strong anti electromagnetic interference ability. The stability and ripple coefficient of the power supply are very good, and the protection circuit is perfect. The power supply adopts four digit digital display voltmeter and galvanometer, which can be set and displayed to the last two decimal points accurately. Low ripple noise, ripple below 30 mV peak to peak. The product has locking keys, buttons and output knobs on the switch to prevent unexpected changes. Products have a variety of intelligent protection functions, such as output short circuit protection, tracking overvoltage protection (tracking OVP), tracking overcurrent protection (tracking OCP), overtemperature protection. Products are widely used in the following areas:

1. General Testing of R&D Laboratories

2. Infrastructure of Posts and Telecommunications

3. LED Lighting Test

4. Quality Control and Quality Inspection

5. Motor Aging Test

6. Research and Development of Science and Technology

7. Power Supply for Automotive Electronic Circuit Testing

8. Low Power Testing of Semiconductors

9. Testing Mathematical Experiments

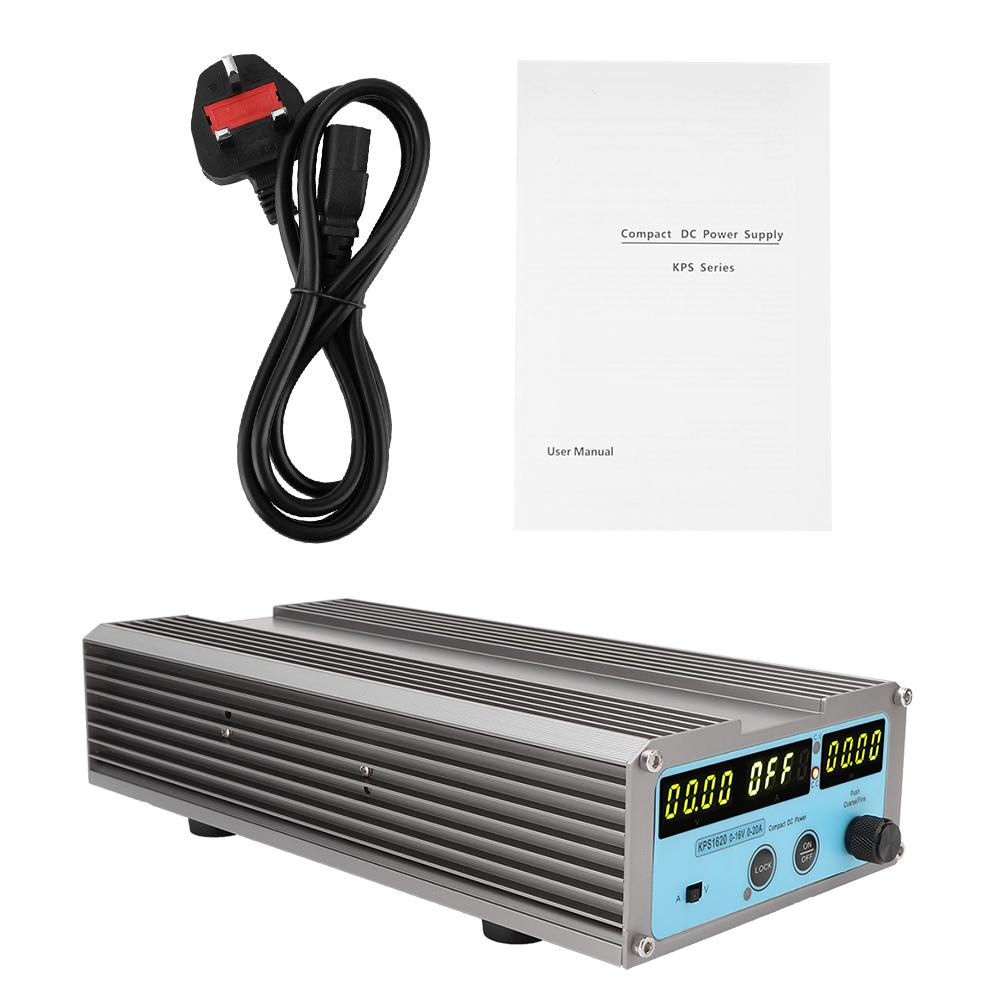

10. Industrial Control and Automation Specification: Model: KPS1620 Operating voltage range: 115v 250v + 10percent Vac Operating frequency range: 45 65HZ Output current range: 0 20A Efficiency (220Vac, full load): more than 87percent Full load input current (220Vac): less than 2.5A No load input current (220Vac): less than 120mA Voltmeter accuracy: less than 0.3percent + 1 bit Ammeter accuracy: less than 0.3percent + 2 digits Constant pressure state Load regulation (0 100percent ): less than 50mV Ripple noise (peak): less than 30mV Ripple noise (r.m.s): less than 3mV Setting accuracy: less than 0.3percent + 10mV Transient response time (50percent 100percent rated load): less than 1.0ms Constant current state Ripple current noise (peak to peak): less than 30mAp p Setting accuracy: less than 0.3percent + 20mA Package list: 1 * Power supply 1 * Wire 1 * User manual 1 * Product Qualification Certificate Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product.
