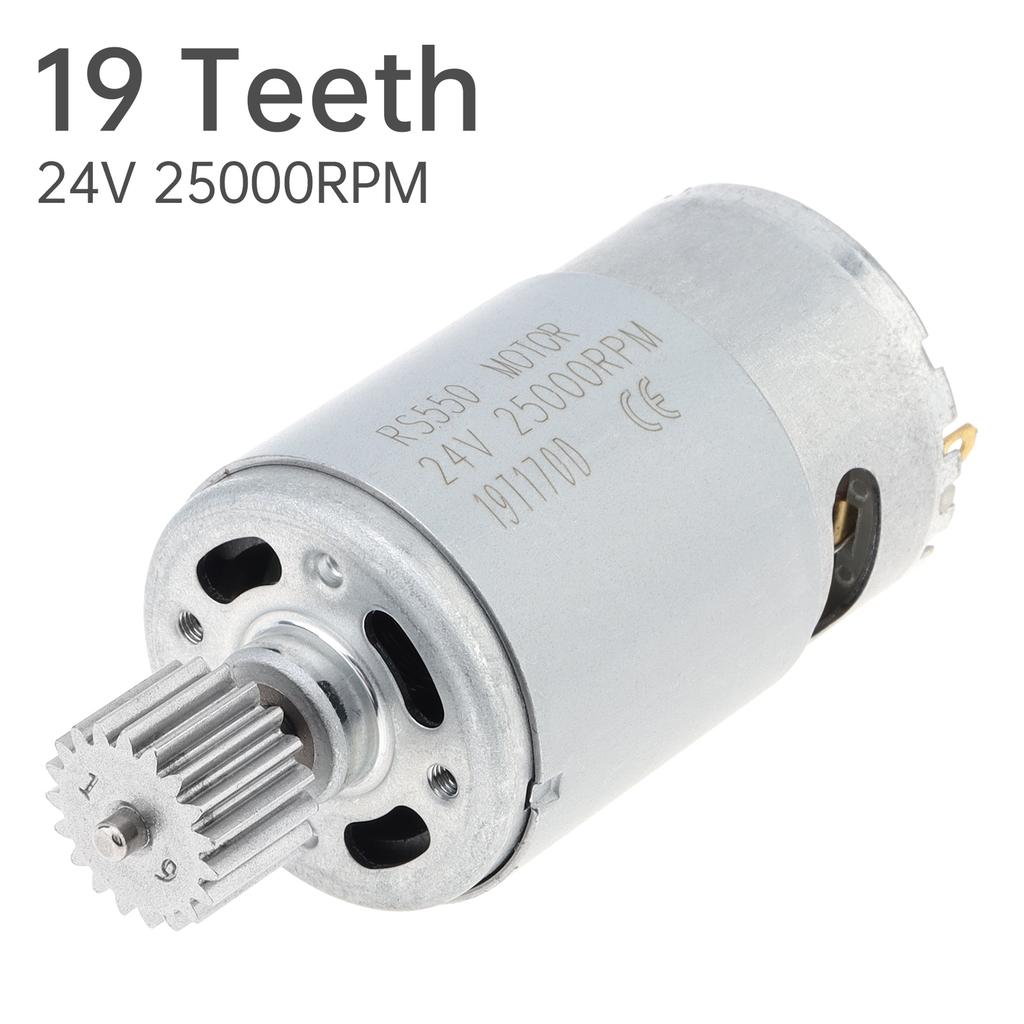

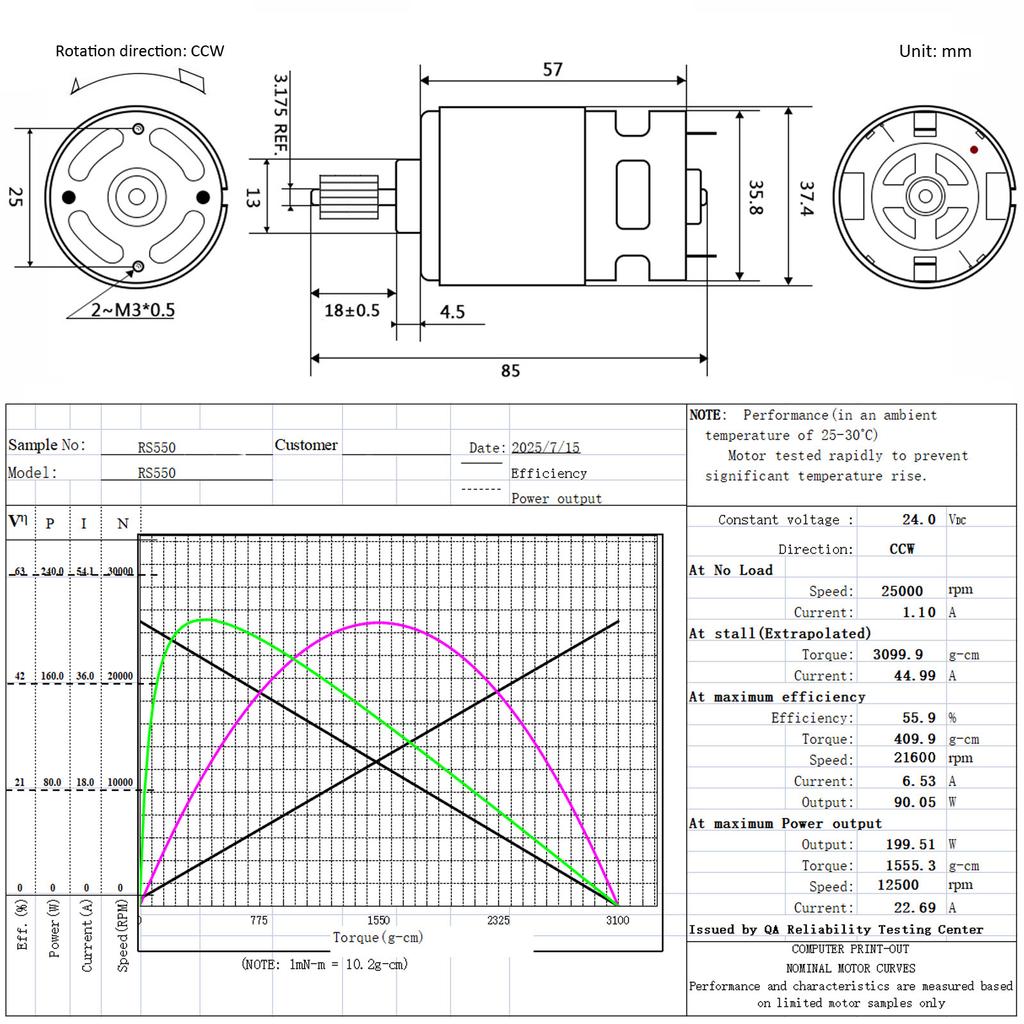

Product Name: 19 Teeth RS550 DC Motor
Model Number: RS550
Power: Max. 200W
Rotation Direction: CW/CCW
Gear Teeth: 19 Teeth
Shaft Diameter: 3.17mm
Output Shaft Length: 18mm
Commutation: Brush
Torque: Max. 1555.3g
Installation Screw Spacing: 25mm
No Load Current: 1.1A
Stall Current: 45A
Voltage: 24V DC
Gear Diameter: 16.8mm
Working Current: 6.53A
Installation Screw Size: M3 (Not included)
Gear Thickness: 11.3mm
No Load Speed: 25000RPM
Shaft Total Length: 85mm
Features:
- Suitable for electric ride on vehicles, battery powered rid on car, electric go karts, electric ATV, electric rock crawler, and various DIY electrical projects.- RS550 24V 25000RPM high speed DC motor with cooling fans, can effectively increase the torque of your ride on vehicle and enhance its climbing ability.
- Easy to Installation. Motor front can be fixed with 2 x M3 screws, best replacement for damaged or rusty motors on your ride on vehicles.

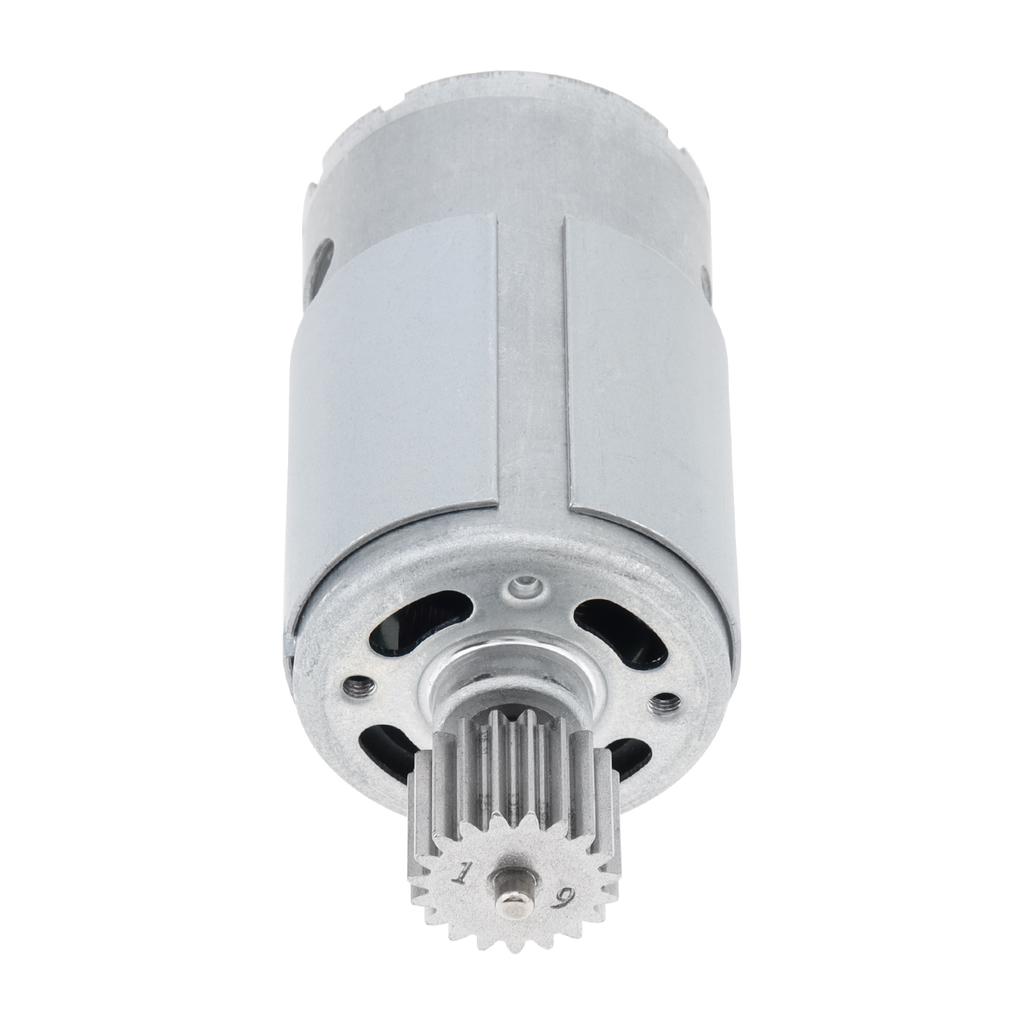

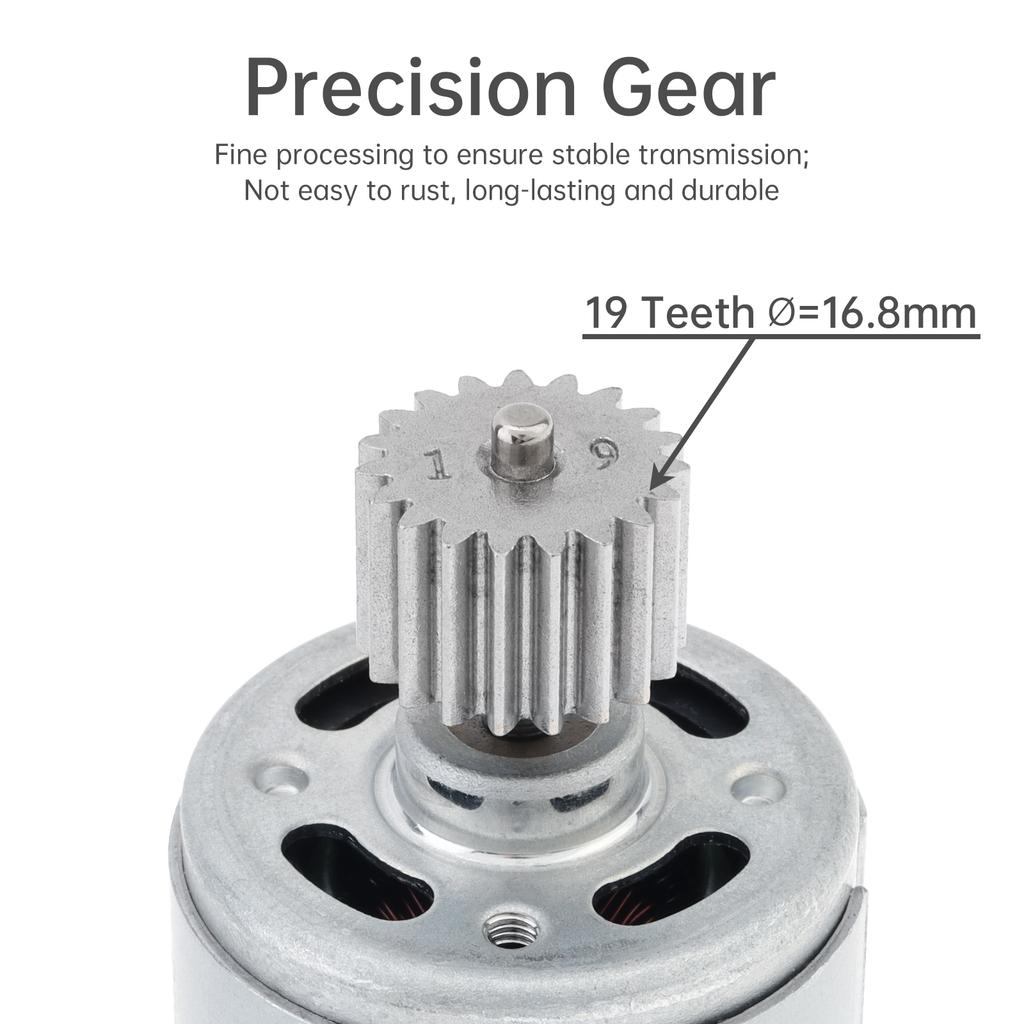

- 19 Teeth Metal Gear. The gear sturdy and wear resistant, already securely assembled on the motor shaft, no need for manual assembly, easy to use.

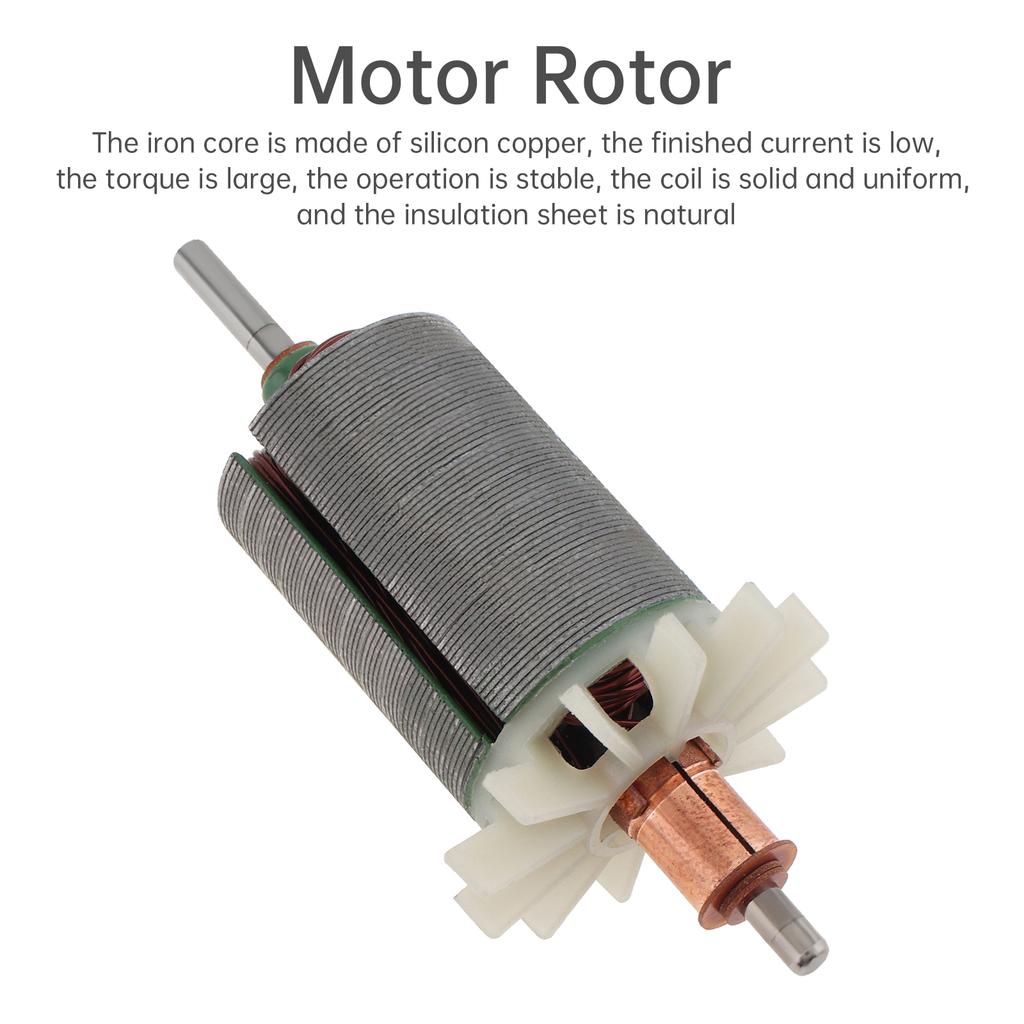

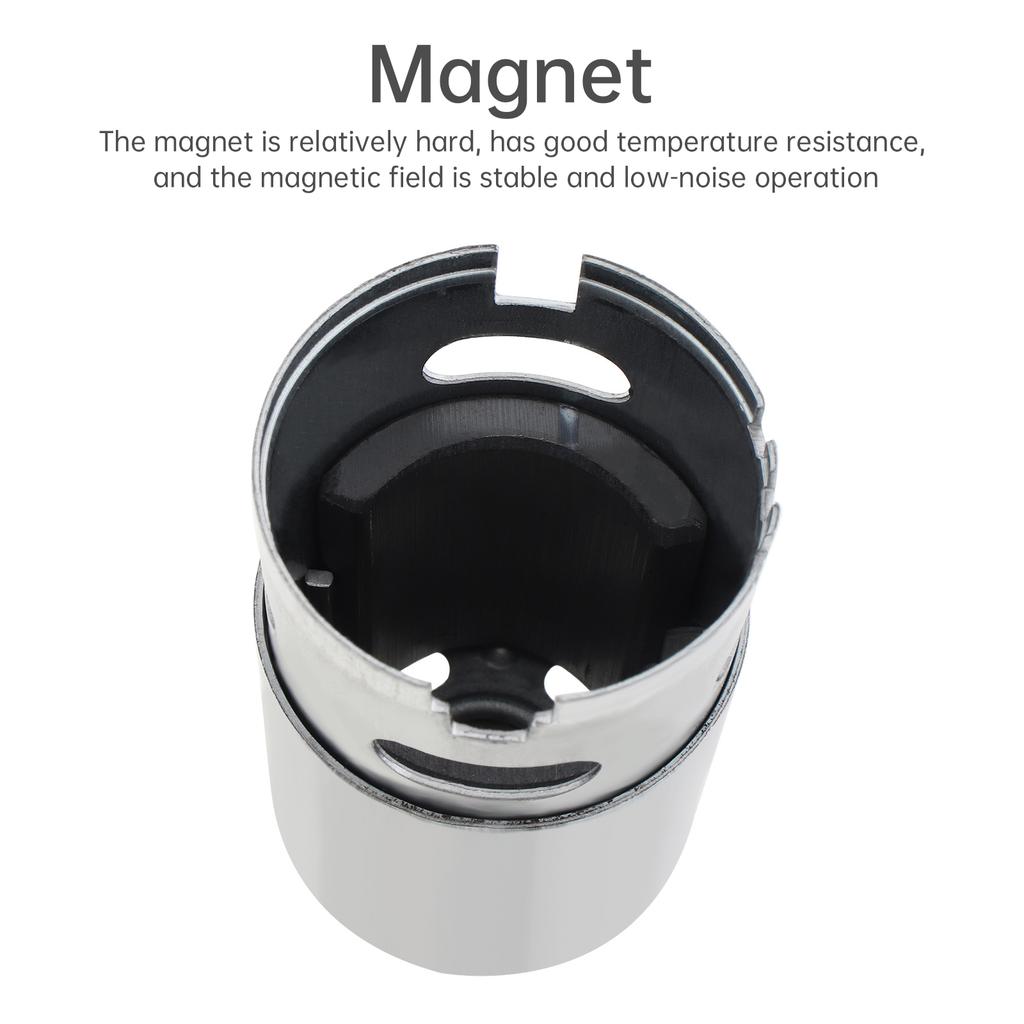

- Solidly Constructed. The shell made of stainless steel material, pure copper coil, high efficiency, strong output power, stable performance.
How to choose a motor for electric ride on vehicles:

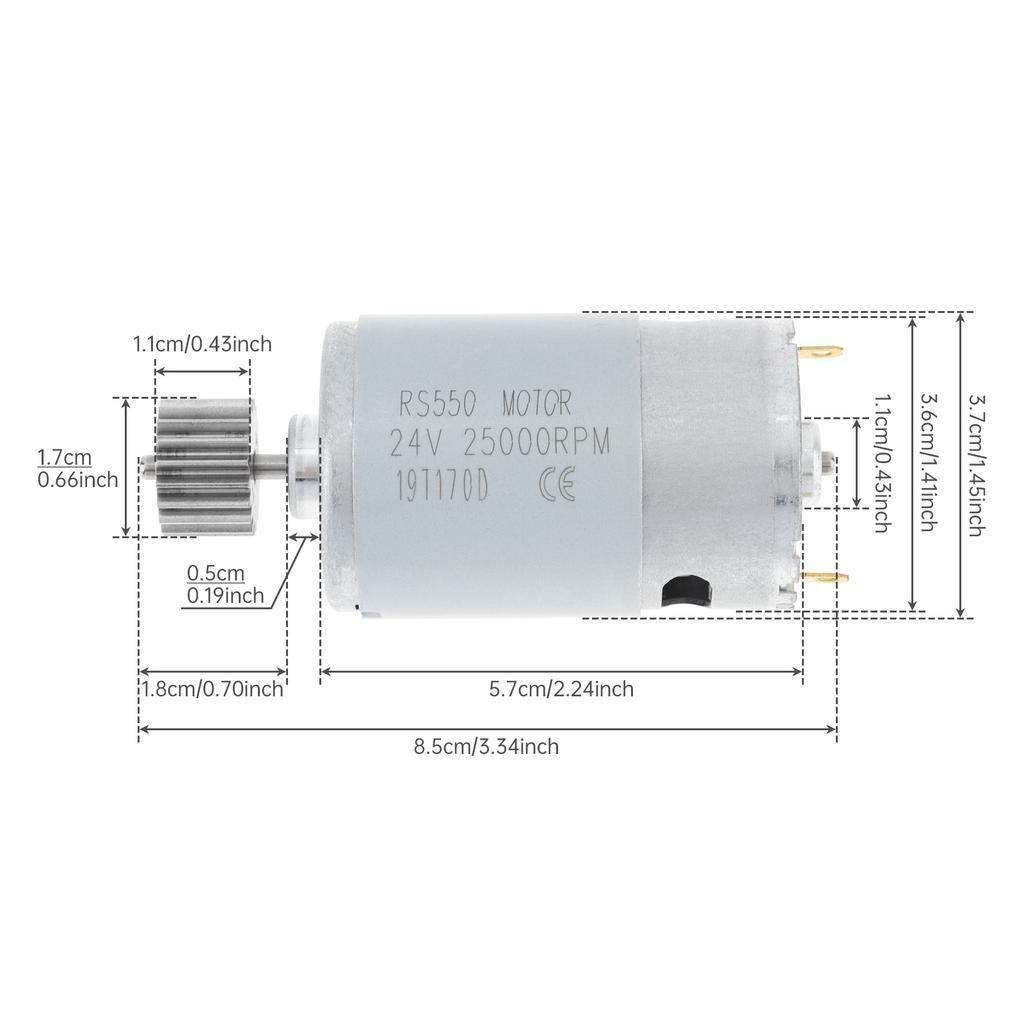

1. Confirm your motor model is RS550/RS555 or motor diameter(about 37.2mm), and motor body length(about 57mm), and total length(about 85mm).
2. Confirm the voltage of your motor and choose a motor with the same or similar voltage.
3. Confirm the number of teeth of your motor, make sure to choose the motor with the same number of teeth, and verify that the outer diameter and thickness of the gears are the same or similar.
Note:
- The RS550 motor has multi voltage and multi gear teeth combinations, which can be adapted to many electric vehicles on the market, but there are too many brands and models of electric ride on vehicles, which makes it impossible for us to identify them all, so please compare the model and teeth of the original motor before purchasing. It must be the same model to replace it.
- This motor rated voltage of 24V, and capable of normal operating within a DC voltage range of 12-24V. The lower the input voltage, the lower the motor speed will be. Do not exceed 24V input voltage, otherwise it may be damaged easily.

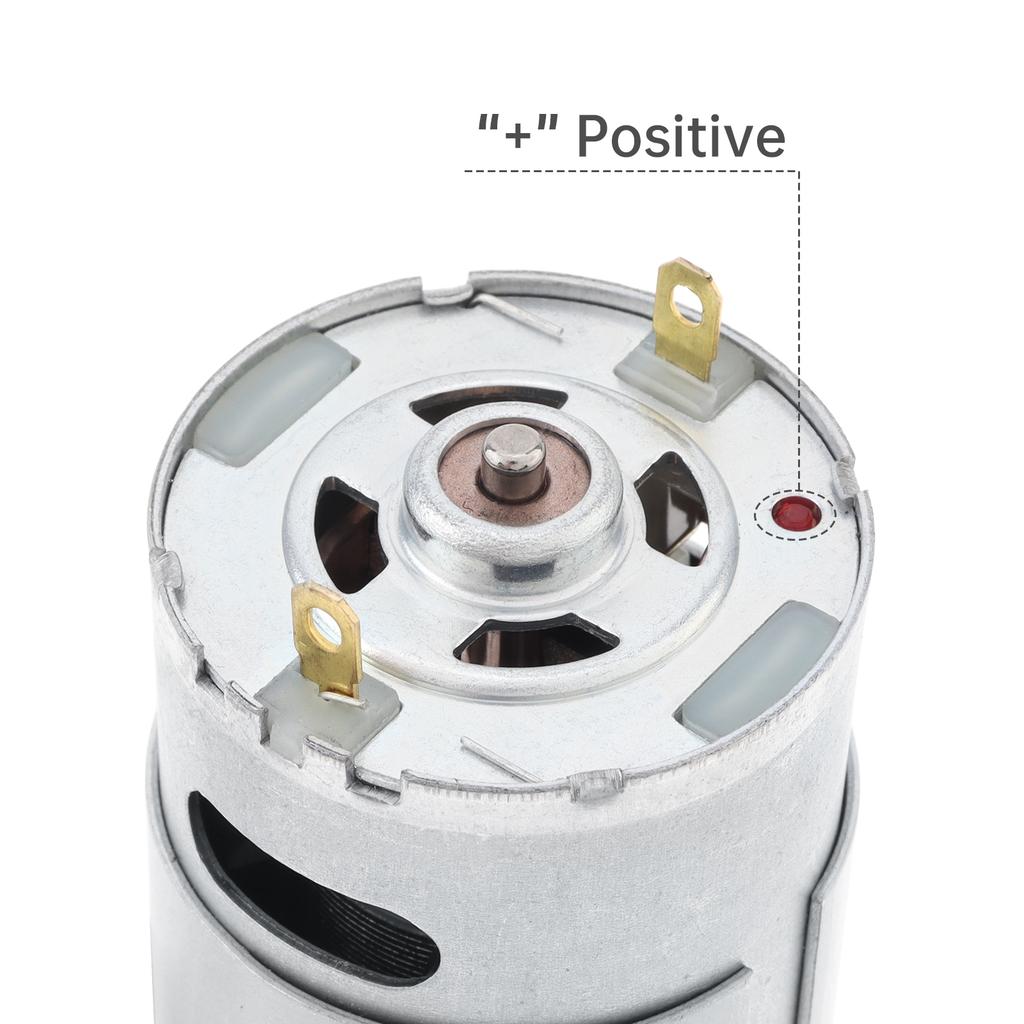

- This motor can rotate in forward and inverse directions. If the rotation direction is inversed, simply swap the positive and negative connections to correct it.
- Can be replace for rs550 and rs555 model number motor, the RS550 and RS555 motors can be used interchangeably.
Package Including:
1 x 19 Teeth DC Motor
