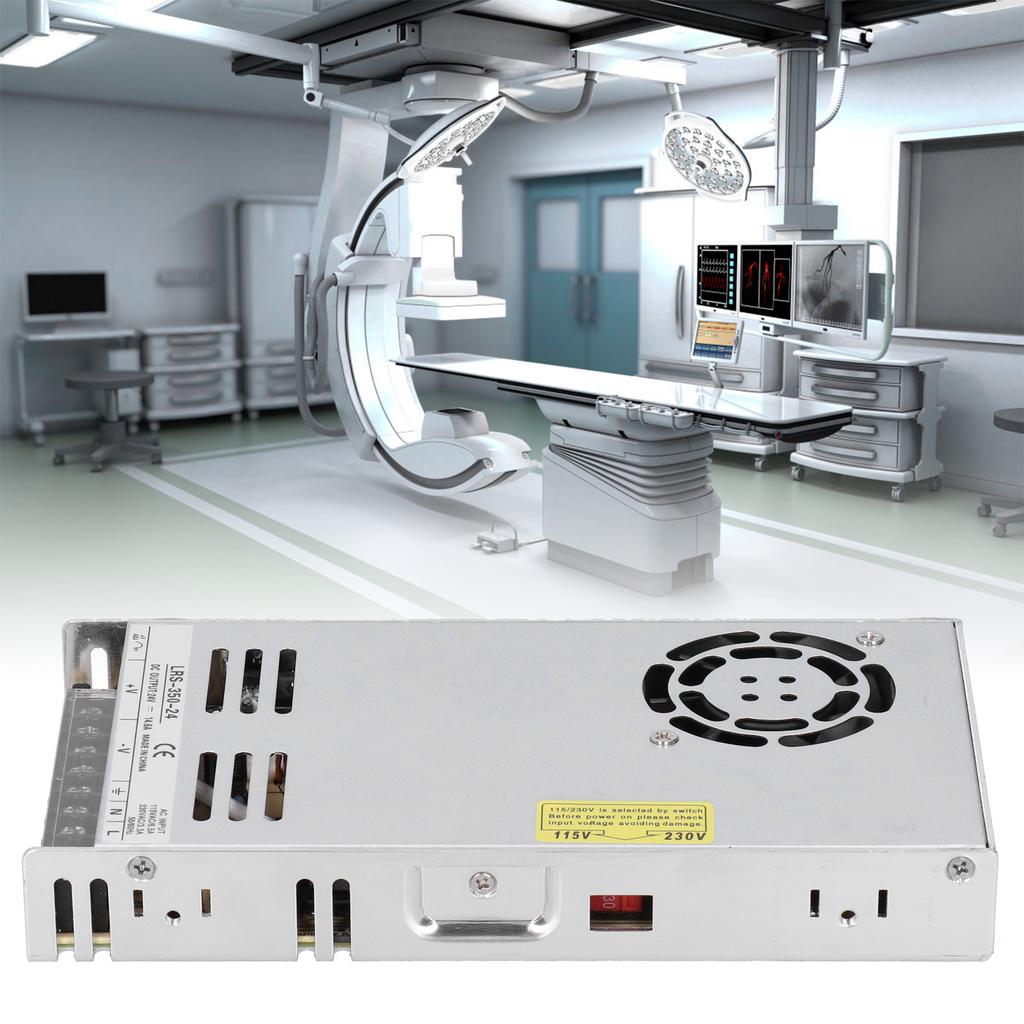

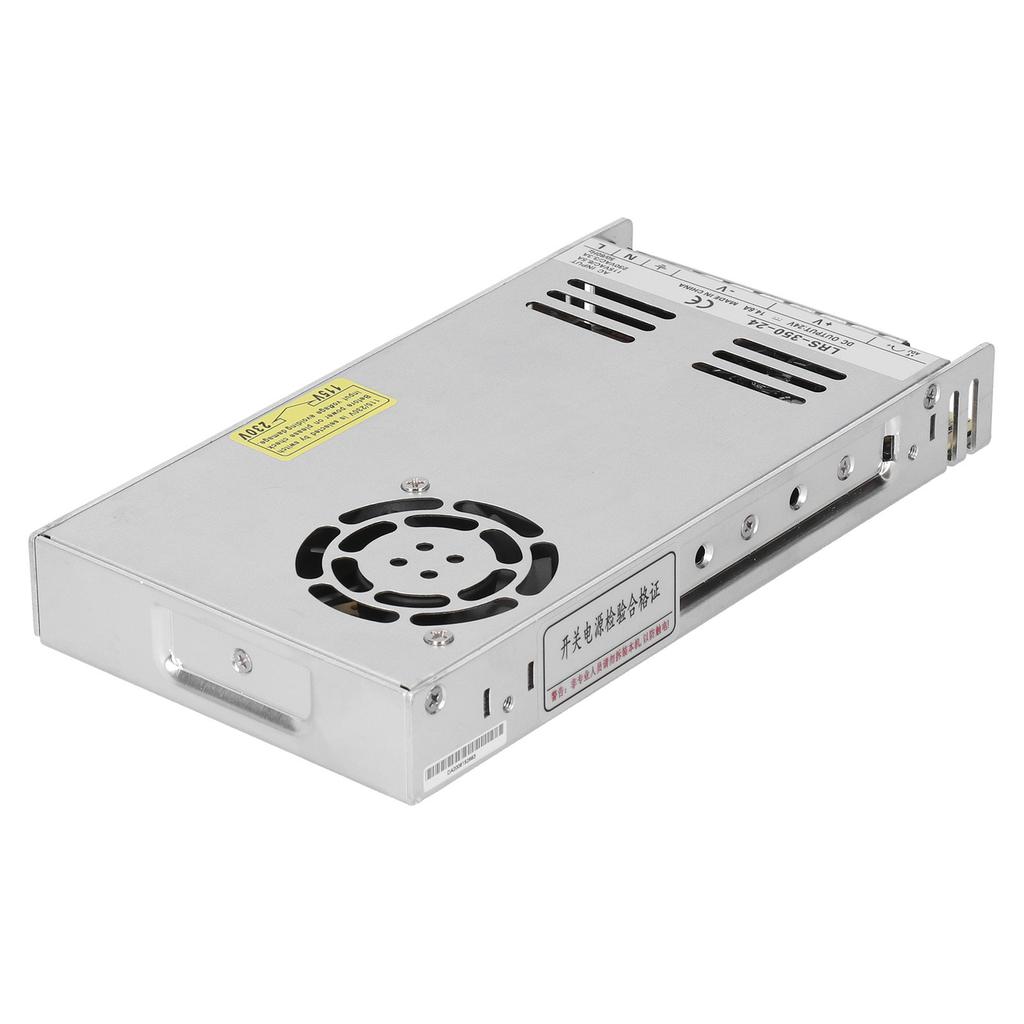

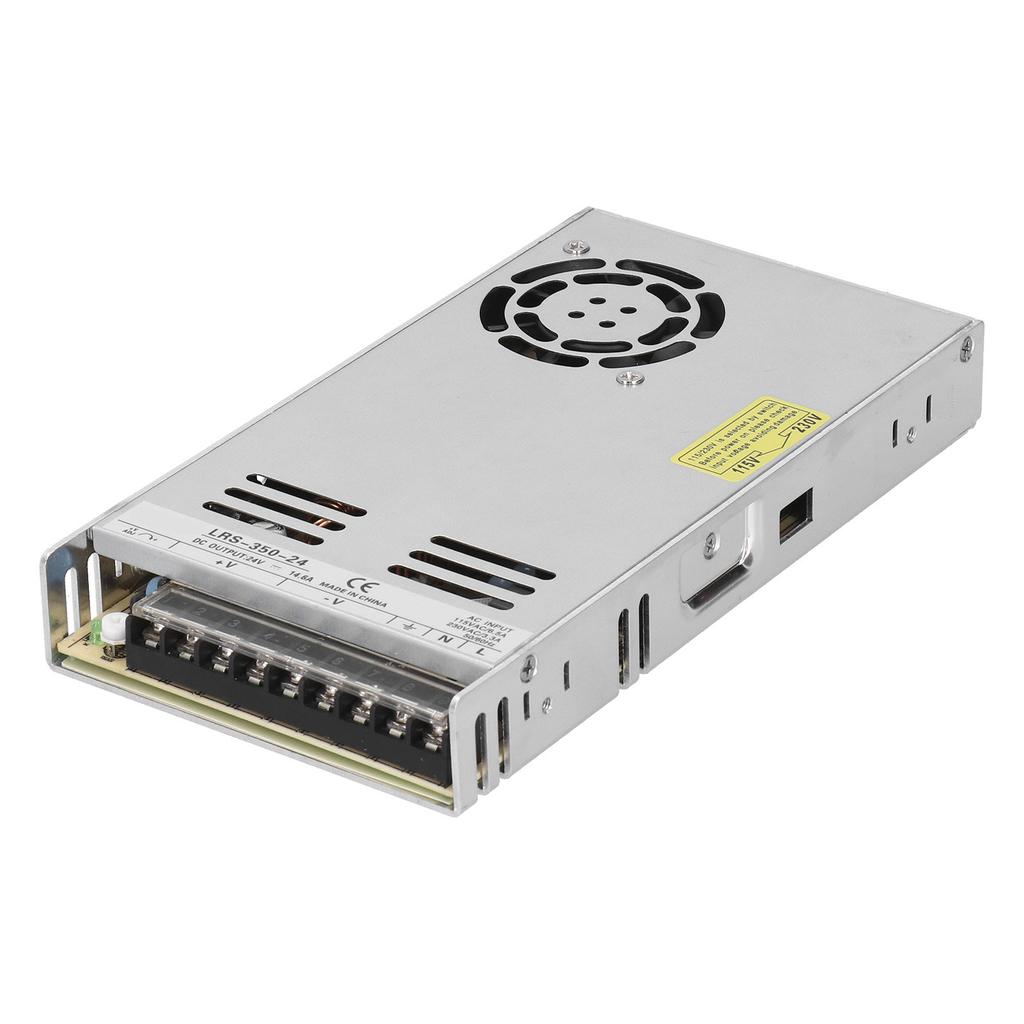

BERM Switching Power Supply with LED Indicator Transformer Driver Supplies 47 ~63HzLRS35024

Feature: 1. The AC input range can be selected by the switch, can withstand 5G vibration test, and there is an LED indicator for booting. 2. With 100percent full load aging test, the maximum working temperature can get 70 celsius . 3. The product is convenient to use and with good performance, with high efficiency and long life. 4. With overload protection function, will automatically recover after the fault condition is eliminated. 5. Small size, easy to carry and store, convenient to use and with good performance. Specification: Item Type: BERM Switching Power SupplyMaterial: Aluminum, PCB Purpose: Power supply function Output Value: Model LRS35012 LRS35024 DC Voltage 12V 24V Rated Current 29A 14.6A Current Range 0~29A 0~14.6A Rated Power 350W

350W Ripple and Noise (maximum) 120mVpp 150mVpp Voltage Adjustment Range 10.2 ~ 13.8V 21.6 ~28.8V Withstand Voltage +1.0percent +1.0percent Line Adjustment +0.5percent +0.5percent Load Regulation +0.5percent +0.5percent Setting, Rise Time 1300ms, 50ms 230VAC 1300ms, 50ms 115VAC (full load) Holding Time (typical Value) 16ms 230VAC 12ms 115VAC (full load) Input Value: Model LRS35012 LRS35024 Voltage Range 90~132VAC 180~264VDC (adjusted by switch) 240 ~ 370VDC (connected to 230VAC) Frequency Range 47 ~63Hz Efficiency (typical value) 85percent 88percent AC Current (typical value) 6.8A 115VAC 3.4A 230VAC Inrush Current (typical value) 60A 115VAC 60A 230VAC Leakage Current <2mA 240VAC Protection: Overload: 110~140percent of rated output power; protection type: Hiccup mode, automatic recovery after the fault condition is eliminated Surroundings: Working Temperature: 20~+70 celsius Working Humidity: 20~90percent RH noncondensing Storage Temperature and Humidity: 40~+85 celsius , 10~95percent RH Temperature Coefficient: +0.03percent celsius (0 ~ 50 celsius ) Vibration: 10 ~ 500Hz, 5G 10 minutes1 cycle, 60 minutes each along the X, Y, and Z axes. Safety and EMC: Safety Standard: EN609501, approved. Withstand Voltage: IP0P: 1.5KVAC IPFG: 1.5KVAC 0PFG: 0.5KVAC Isolation Resistance: IPOP, IPFG, 0PFG: 100M Ohms 500VDC25 celsius 70percent RH. Package List: 1 x Power 1 x Screw Pack4 x BracketThe AC input range can be selected by the switch, can withstand 5G vibration test, and there is an LED indicator for booting. With 100percent full load aging test, the maximum working temperature can get 70 celsius . The product is convenient to use and with good performance, with high efficiency and long life. With overload protection function, will automatically recover after the fault condition is eliminated. Small size, easy to carry and store, convenient to use and with good performance.
