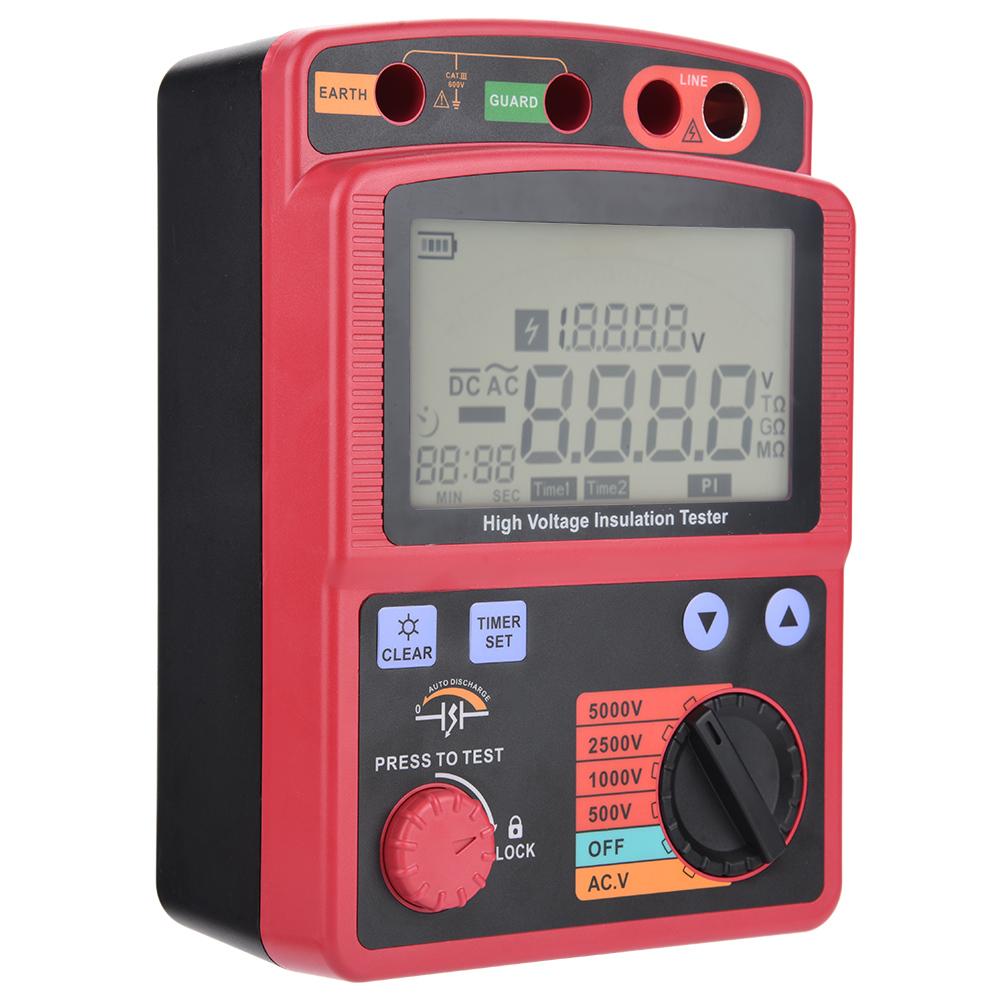

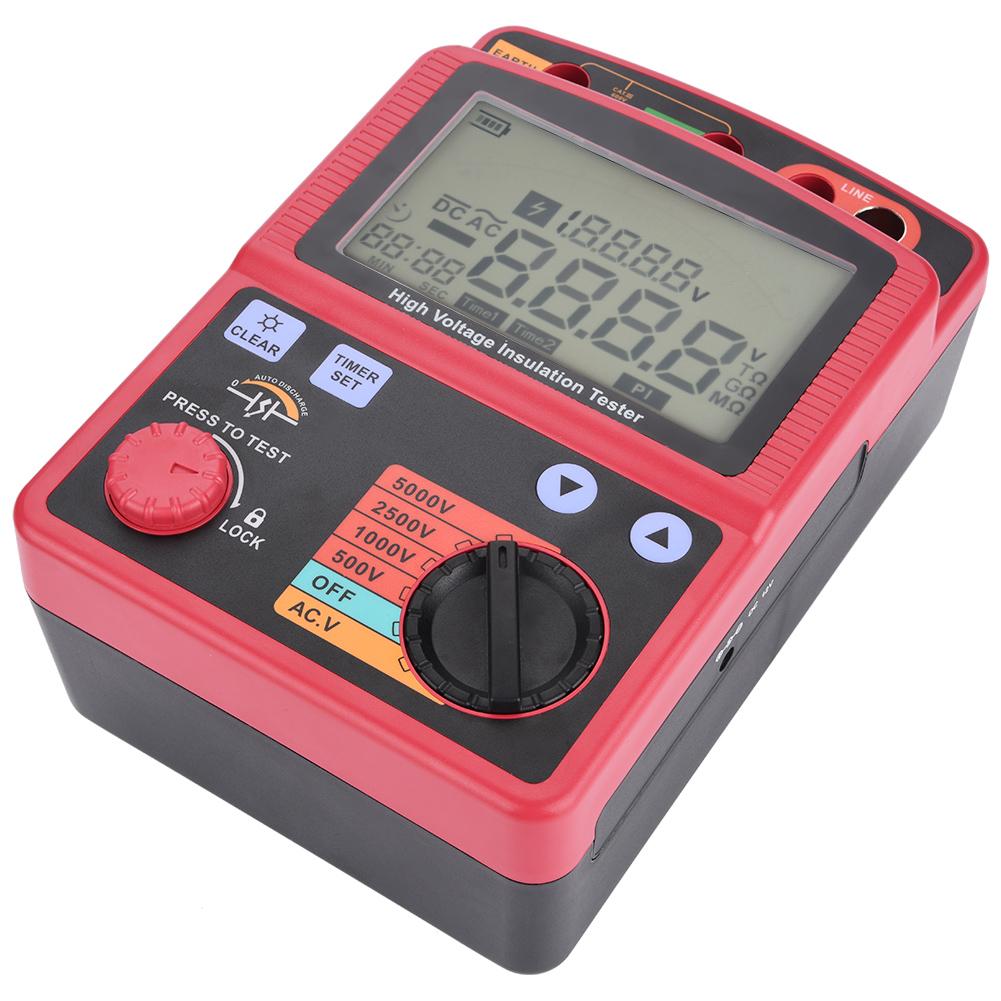

GM3125 Digital Insulation Resistance Multimeter Tester 5KV 0.0M Ohm 1000G Ohm

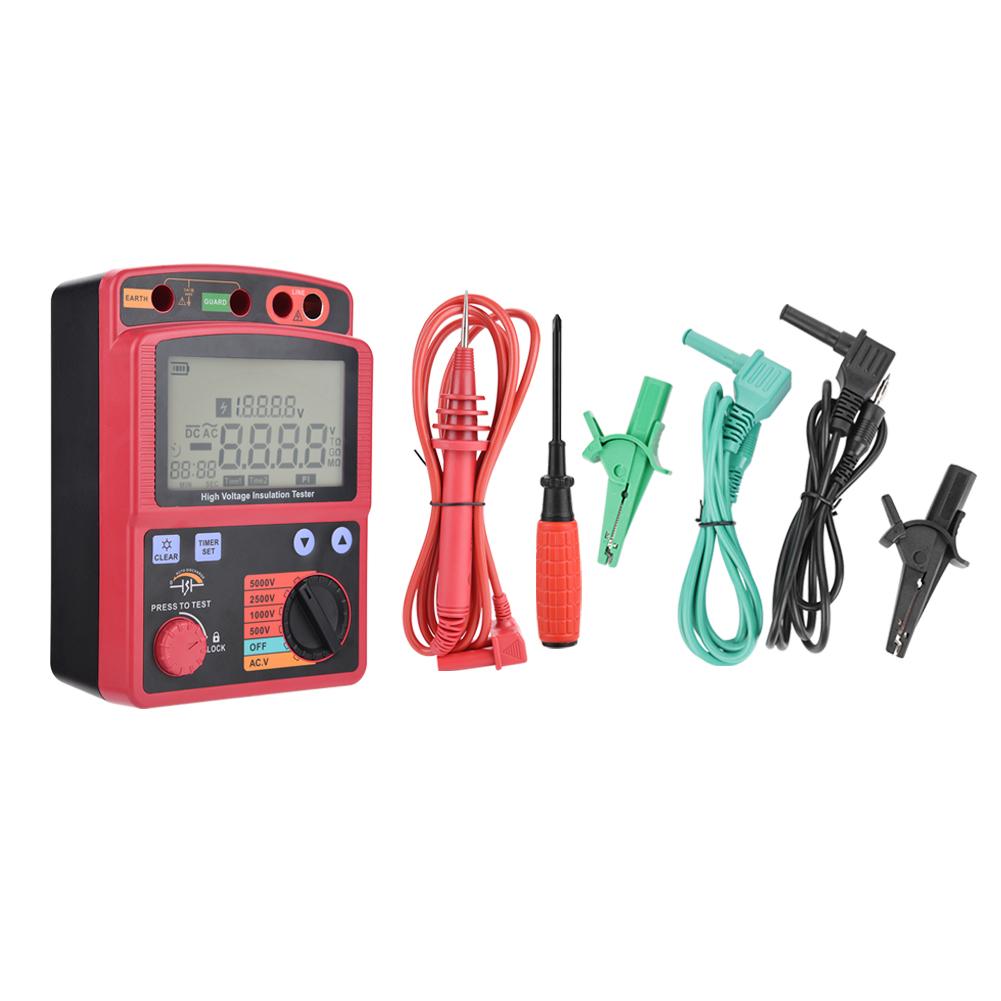

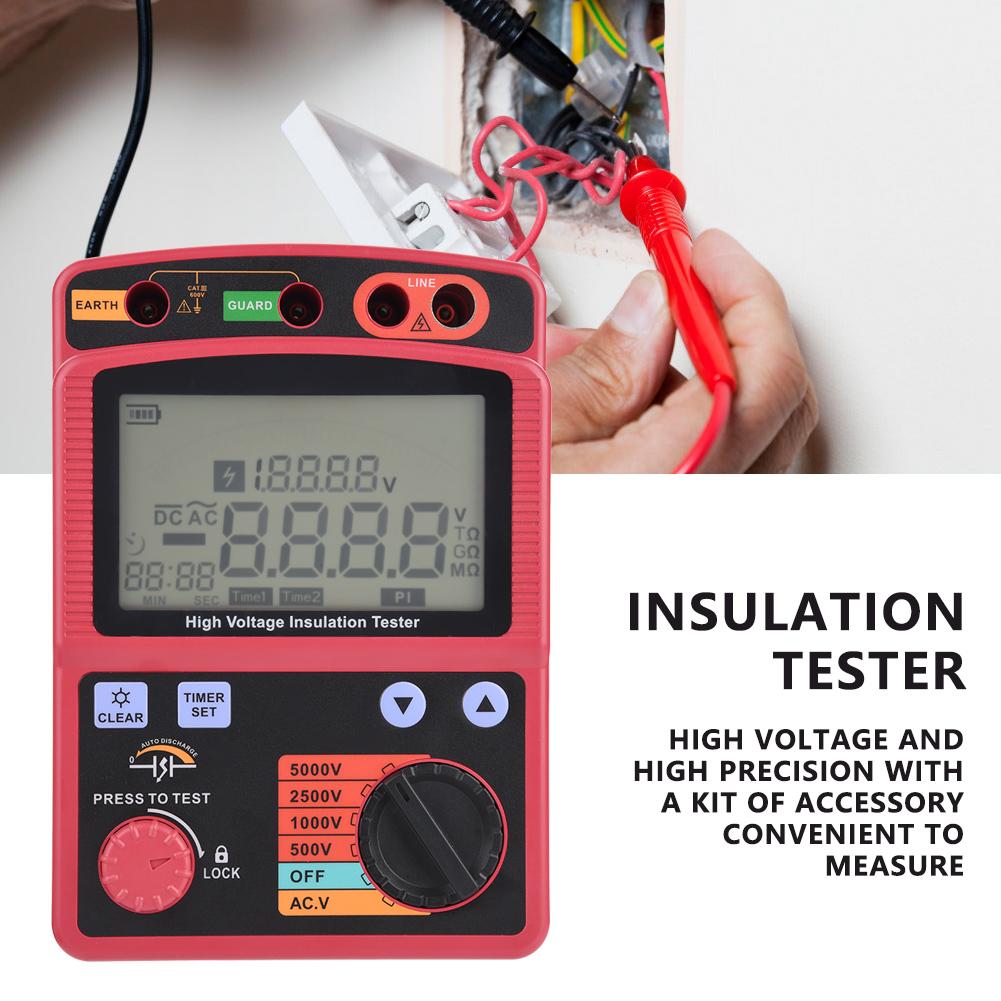

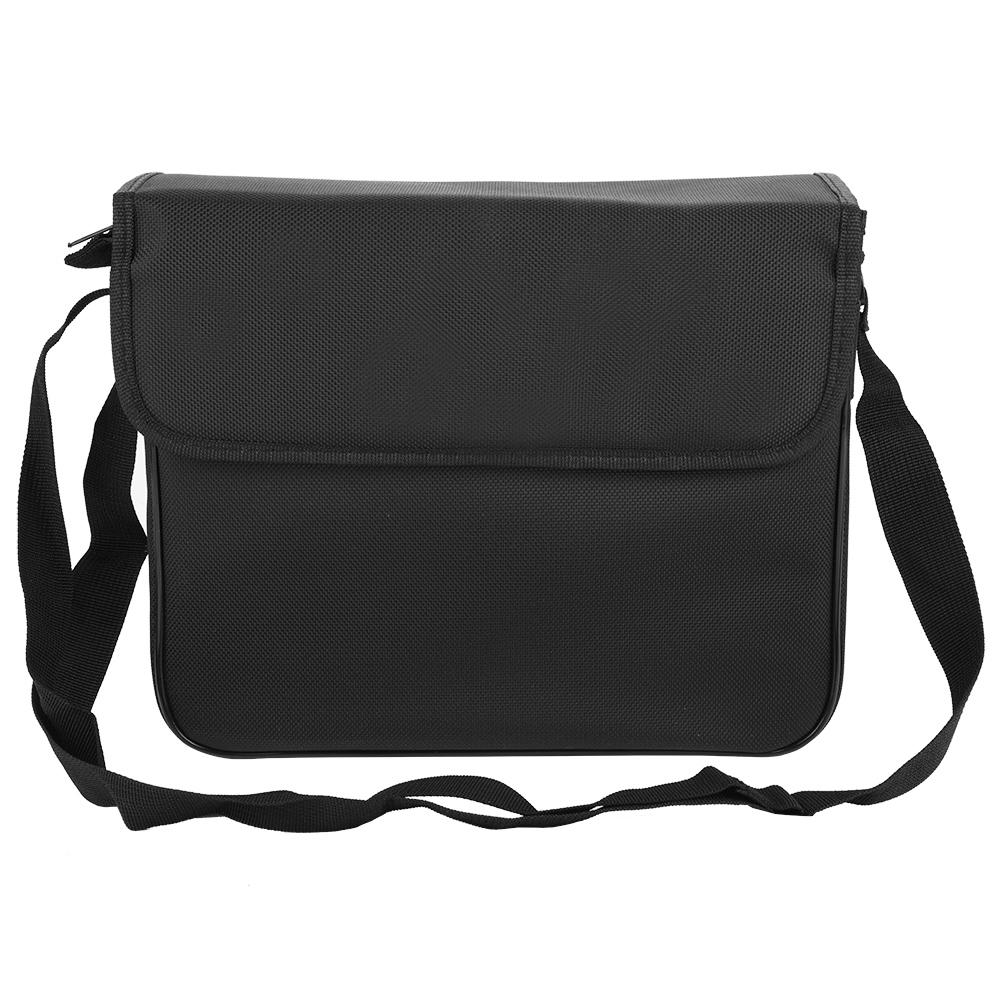

Features: Test the in sulation resistance with 500V 1000V 2500V 5000V. Automatic calculate PI (polarization index) and continuity test. With backlight display for easy viewing at day or night and auto power off. Support DC and AC voltage test and timing test. High voltage and high precision with a kit of accessory, convenient to measure. Specification: Model: GM3125 Rated Voltage: 500V 1000V 2500V 5000V Measure Range: 500V: 0.0999M Ohm 1000V: 0.01.99G Ohm 2500V: 0.099.9G Ohm 5000V: 0.01000G Ohm Accuracy: +5percent rdg, +5percent rgt DCAC Measure: 30600V Resolution: 1.0V Overload Protection: AC 1200V 10seconds Withstand Voltage: AC83320V 5seconds Insulation Resistance: 1000M Ohm DC1000V Short Circuit Current: 1.4mA Operation Voltage: 12V Battery: 4 * 1.5V LR14 Battery (NOT included) Size: Approx. 153*96*220mm6*3.8*8.7inch Weight: Approx. 2740g 96.7oz Package List: 1 x Insulation Tester 1 x Green Test Wire 1 x Black Test Wire 2 x Large Crocodile Clip 1 x Screwdriver 1 x Red High Voltage Bar 1 x Black Bag 1 x Accessory Bag Test the insulation resistance with 500V 1000V 2500V 5000V Automatic calculate PI (polarization index) and continuity test With backlight display for easy viewing at day or night and auto power off Support DC and AC voltage test and timing test High voltage and high precision with a kit of accessory, convenient to measure
