Features:
- Brand new and high quality
- Made of high quality material, durable

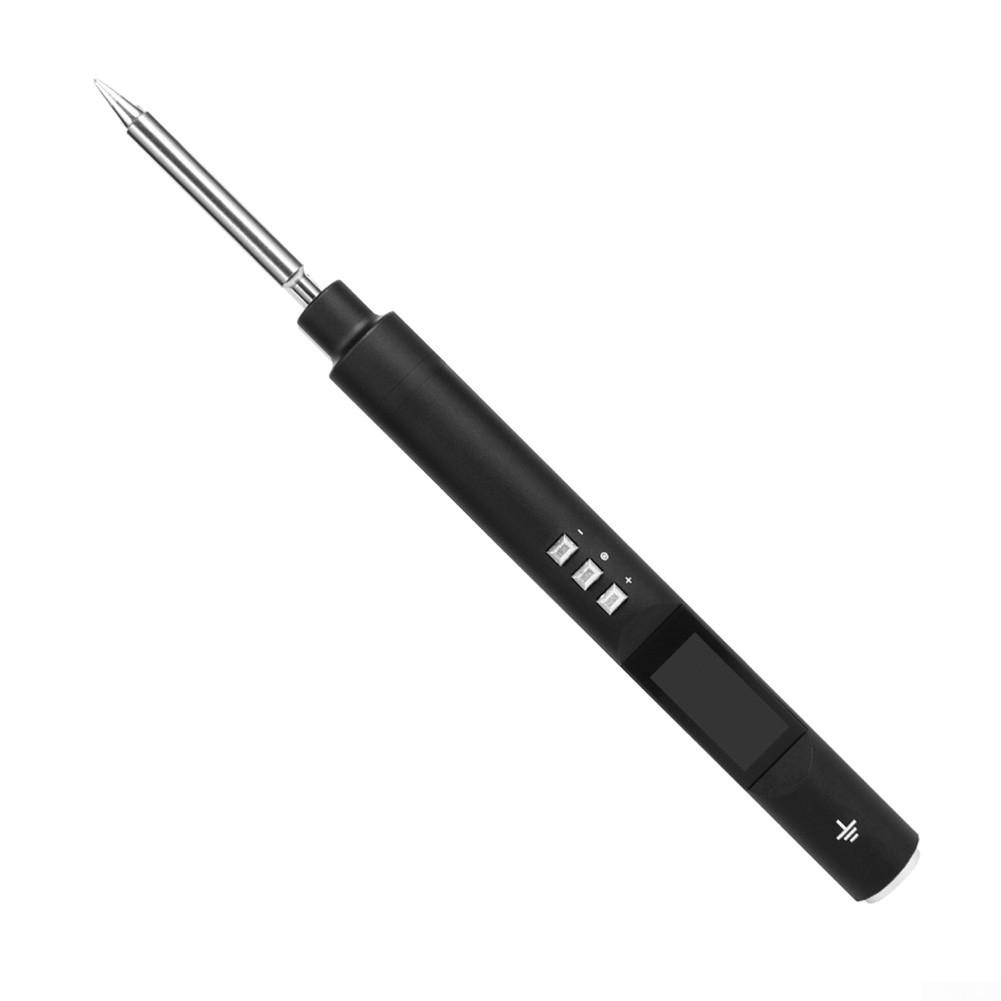

- PTS200 T13 65W PD3.0 Intelligent Soldering Iron Soldering Station CNC Metal Shell Open Source Programming Compatible with T12 TS101 PINE64
- Ingenious structural design, no complicated operation, only need to use different metal sleeves to be compatible with T12 and TS welding heads.
- The full metal CNC body is anodized to provide users with an excellent grip.
- Support PD3.0, easily reach 65W power.
- PTS200 is a smart electric soldering iron powered by TYPE-C interface. It can be powered by 5V/12V/20V power supply/power bank. The maximum output power is 100W, and the temperature is controllable at 50-450°C. The fuselage shell is made of CNC metal, fixed with high-precision threads, no screws required.
- 0.96 inch OLED screen, rich display content
- There are three built-in physical keys, namely +, -, OK. Confirmation key: It is the key to start the temperature, with a one-key heating function
- The fuselage is equipped with a precision gyroscope, which cooperates with the software algorithm to realize the high-sensitivity automatic sleep function.
- The soldering iron body is designed with full aluminum alloy. Solid and reliable body, good heat dissipation

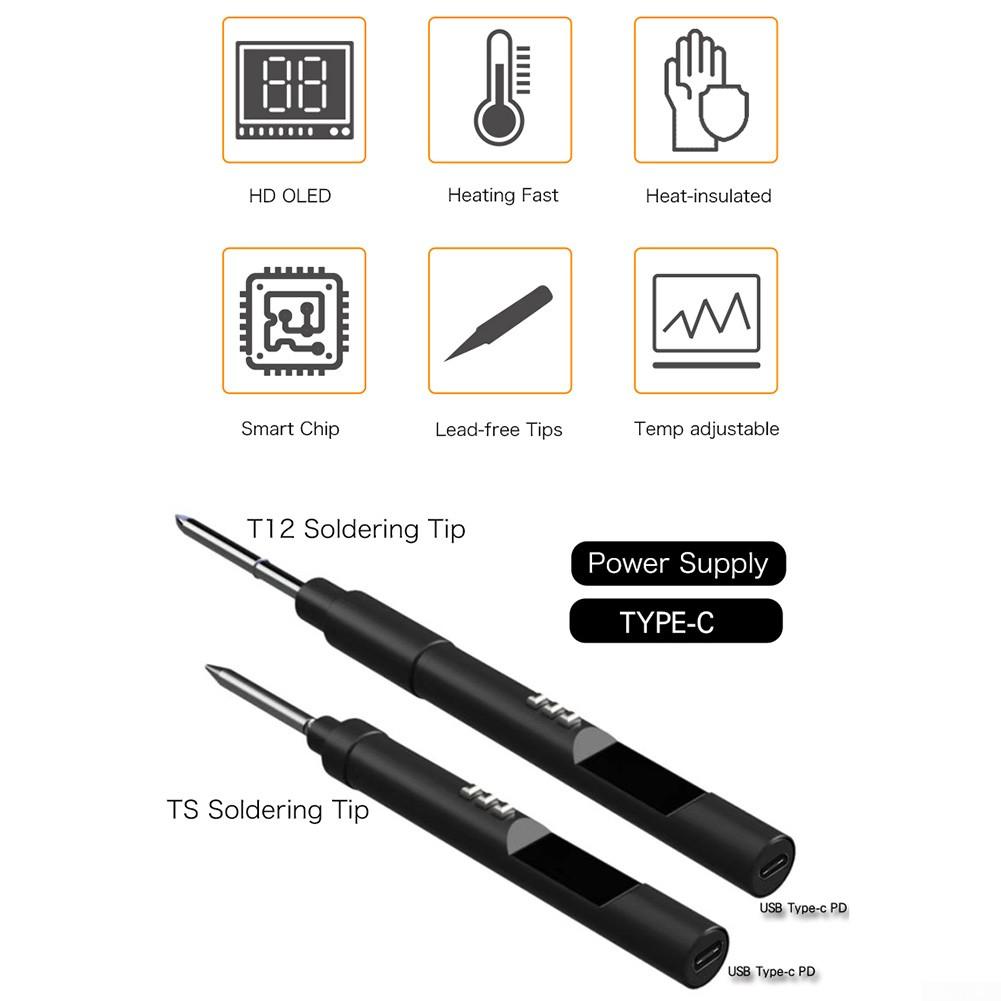

- A variety of soldering iron tips can be replaced: T12, T13, TS soldering iron tips. (Default is TS welding head)
- The soldering iron is specially designed for PD2.0/PD3.0 fast charging protocol, easily supports 65W
- Vibration sensing, automatic sleep and other functions
- Support switching between Chinese and English.
- Support USB upgrade firmware, more interesting functions will be updated later
parameter:
- Screen: 0.96 inch OLED
- Power and data interface: TYPE-C
- Total length of TS welding head: 184.21mm
- Total length of T12 welding head installed: 188.21mm
- TS welding head weight: 136g
- TS welding head weight: 133g
- Working power: 65W (maximum 100W, but more than 100W power supply and custom welding head are required)
- Temperature control range: 50-450 degrees
- Temperature stability: ±5%
- Resistance of soldering iron tip to ground:
