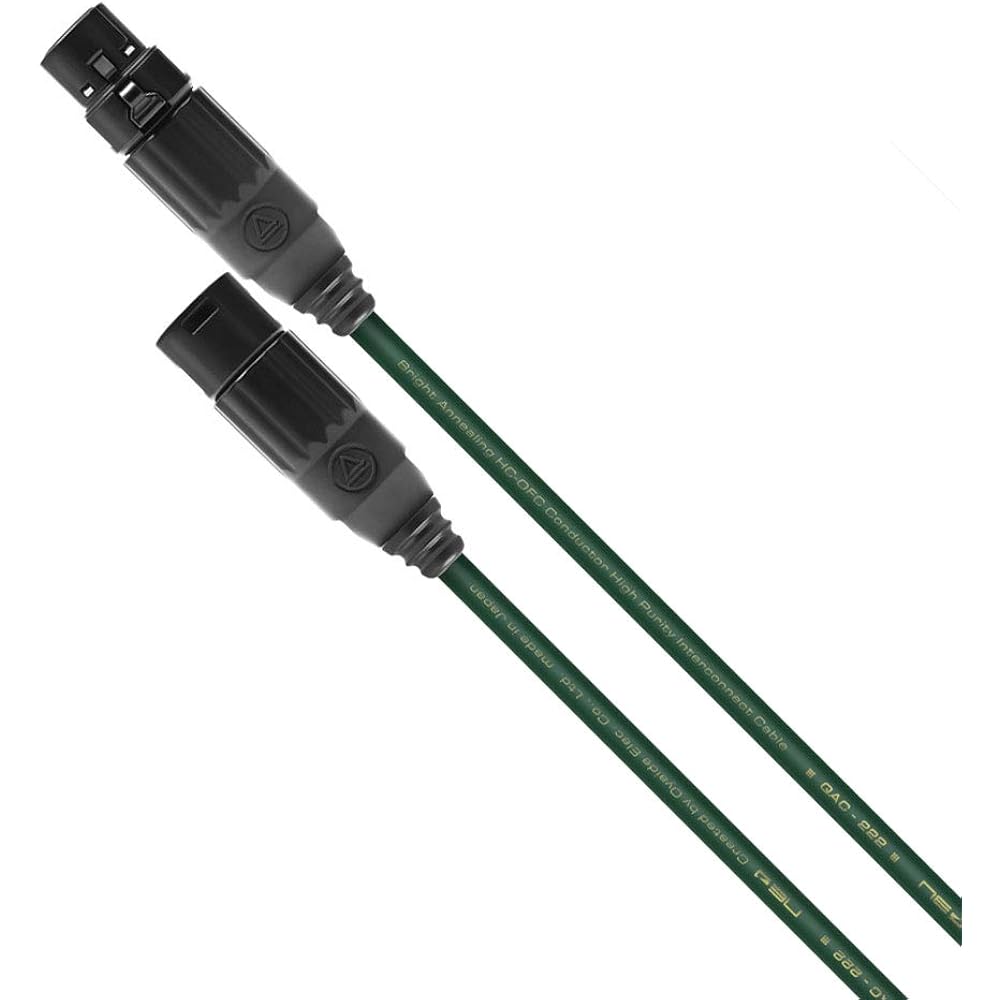

Koyanagide Electric Co., Ltd. AV Cable QAC-222 XLR [3m]

Koyanagide Electric Co., Ltd. AV Cable QAC-222 XLR [3m]

The “QAC-222” series combines natural sound and strength

The QAC-222 series uses the first type of OFC conductor “C1011,” which is completely domestically produced. Additionally, we have developed an “HC-OFC,” which is optimized for instruments and microphones, and further matching, and hardened tuning applied to the conductor. It achieves accuracy that cannot be obtained with general audio OFC cables and the wide range required by professionals, and provides highly workable sound without compromising presence in any band.

The “HC-OFC” is placed at the center, and the cable design follows the QAC-202. PE (polyethylene) with low dielectric properties is used as the insulator to cover the conductor, and signal transmission loss is reduced by suppressing the capacitance (capacitance) of the cable, so high frequency characteristics with good elongation can be obtained. LDPE (low density polyethylene) is used for the inner sheath covering the insulator. By setting the internal sheath to a hardness different from that of the insulator, vibrations transmitted to the cable are effectively suppressed, and a sharper sense of positioning is achieved.

While keeping the philosophy of the “QAC-202” intact, the “QAC-222 Series” expands the possibilities of musical expression.

Conductor: HC-OFC 0.4sq Insulator: PE (polyethylene) Shield: 90% braid ratio Inner sheath: LDPE (low density polyethylene) Exterior: pB-free PVC Solder: OYAIDE SS-47 Plug: XLR: Switchcraft AAA Series/Phone: NEO P-275T, P-275M/RCA: NEO original gold-plated plug
