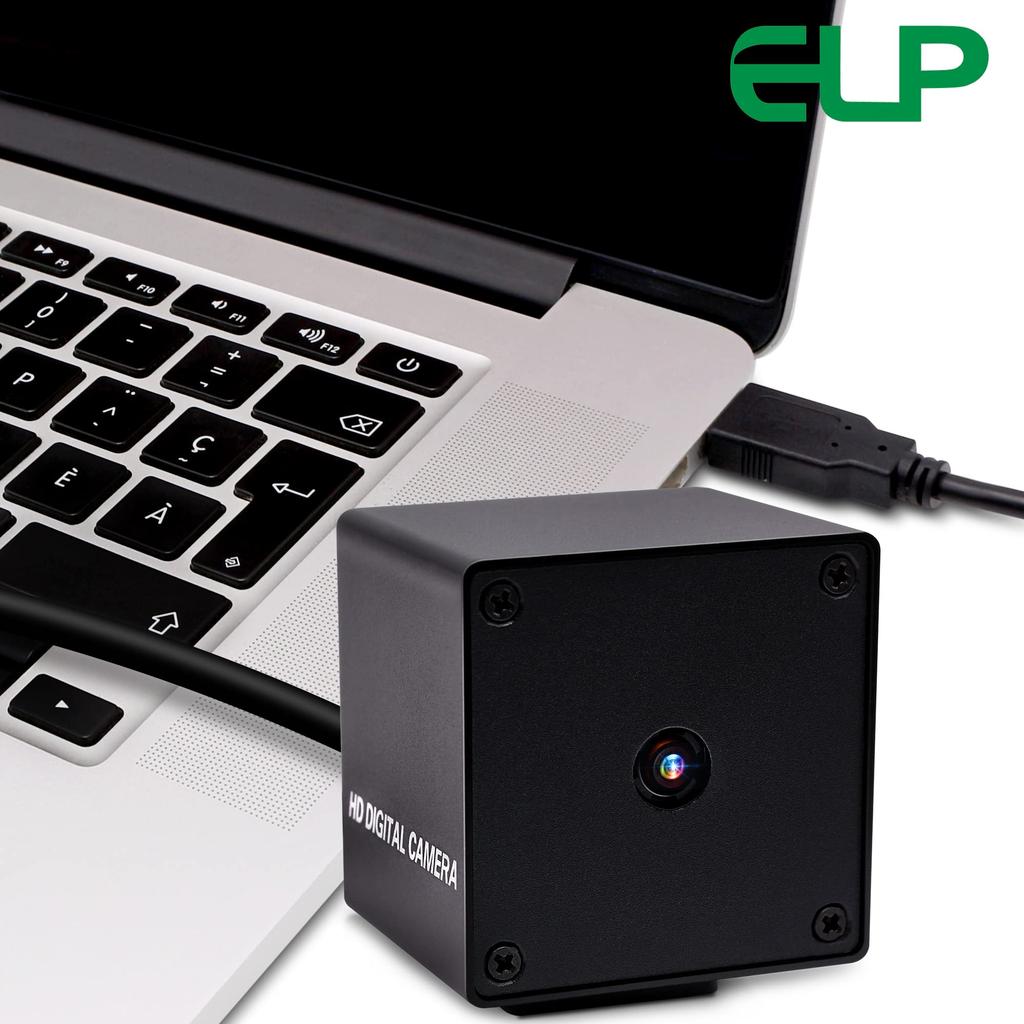

Autocastle ELP 16MP 4K USB Camera Mini Autofocus 68-Degree Industrial

High-quality imaging: Model: ELP-USB16MP01-KAF68 ELP 16mp autofocus USB camera AF, with 68-degree mini-size lens, 16-megapixel IMX298 sensor, sharp images and accurate color reproduction, still image resolution: 4656x3496 maximum. Autofocus: Capture both near and far objects with the same camera. Automatically controlled without lens adjustment tools, resulting in sharper and easier-to-use images than fixed-focus cameras. Field of View: Equipped with a high-quality 68-degree mini-size lens with an IR filter, providing a wider field of view. Horizontal angle: ＞68°, Diagonal angle: 78°. Plug and Play: UVC compliant. Simply connect the camera to your PC, laptop, Android device, or Raspberry Pi using the included USB cable; no additional drivers need to be installed. Applications: The ELP 16MP autofocus USB camera is highly recommended for home surveillance systems, 3D printer monitoring, object recognition and tracking, barcode and QR code identification and scanning, or other machine vision applications requiring high resolution. Model: ELP-USB16MP01-KAF68 Sensor: CMOS IMX298 Sensor size: 1/2.8” Pixel size: 1.12um Image area: 6.4mm x 5.3mm Maximum resolution: 16 million pixels, 4656 (H) x 3496 (V) Compression format: MJPEG / YUY2 (YUYV) Resolution and frame rate 4656 x 3496 MJPEG@10fps YUY2 @ 1fps 4208 x 3120MJPEG@10fps YUY2 @ 1fps 4160 x 3120 MJPEG@10fps YUY2 @ 1fps 4000 x 3000MJPEG@10fps YUY2 @ 1fps 3840 x 2160 MJPEG@10fps YUY2 @ 1fps 3264 x 2448MJPEG@10fps YUY2 @ 1fps 2592 x 1944 MJPEG@10fps YUY2 @ 1fps 2048 x 1536 MJPEG@30fps YUY2 @ 1fps 1600 x 1200 MJPEG@30fps YUY2 @ 5fps 1280 x 720 MJPEG@30fps YUY2 @ 10fps 800 x 600 MJPEG@30fps YUY2 @ 15fps 2320 x 1744MJPEG@30fps YUY2 @ 1fps 1920 x 1080MJPEG@30fps YUY2 @ 5fps 1280 x 960MJPEG@30fps YUY2 @ 10fps 1024 x 768MJPEG@30fps YUY2 @ 10fps 640 x 480MJPEG@30fps YUY2 @ 30fps Minimum illuminance: 0.5Lux Shutter type: Electronic rolling shutter / Frame exposure Connection port type: USB 2.0 High Speed Free Drive Protocol: USB Video Class (UVC) AEC compliant / AWB compliant / AGC compliant Adjustable parameters: Brightness, contrast, saturation, hue, sharpness, gamma, gain, white balance, Backlight contrast, exposure Lens parameters: 68-degree autofocus lens Power supply: USB BUS POWER 4P-2.0mm socket Operating voltage: DC 5V Usage current: 150mA~240mA Operating temperature: -10~70℃ Storage temperature: -20~85℃ Board size/weight: 38 x 38 mm (compatible with 32 x 32 mm boards) / approx. 30 g Cable: Standard 3m Operating system request: WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux using UVC (Linux-2.6.26 or later) MAC-OS X 10.4.8 or later Android 4.0 or later, UVC compatible.
