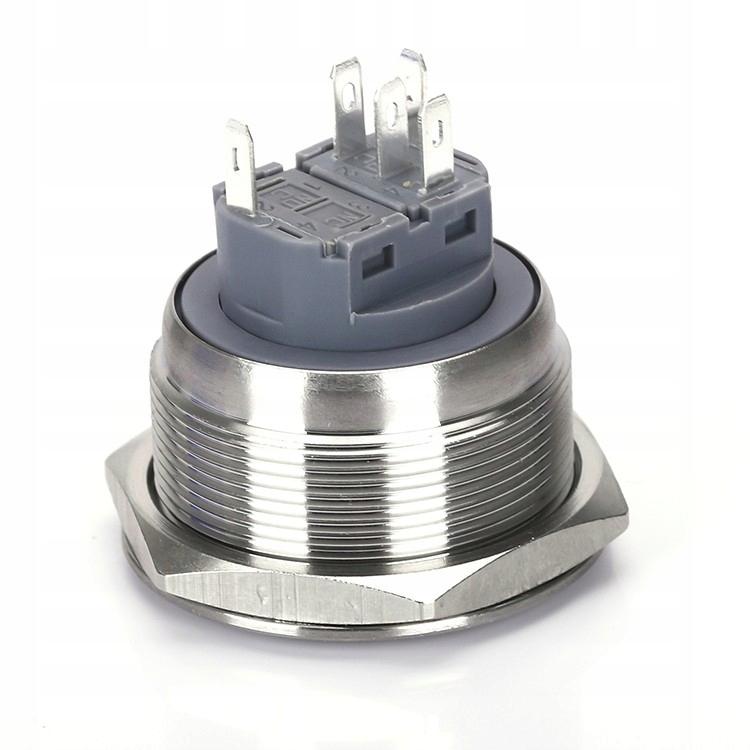

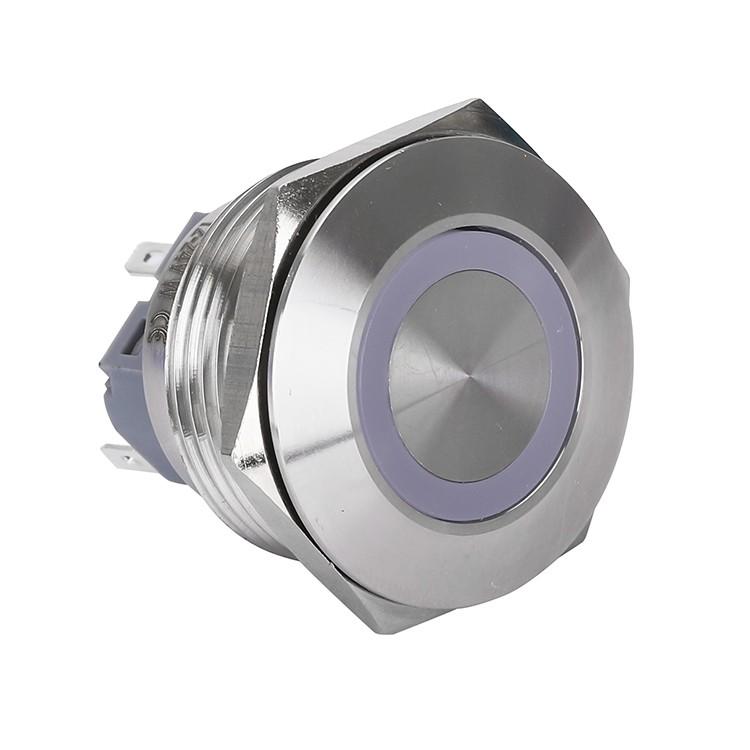

Monostable Vandal-proof Pushbutton 250V 5A 28X35

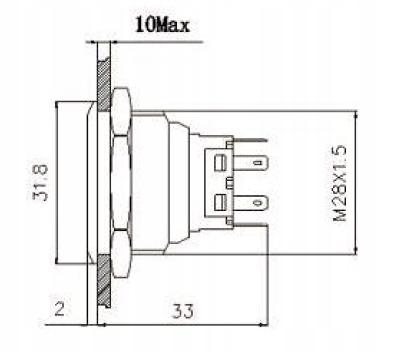

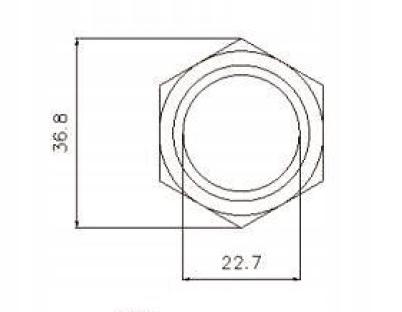

Vandal-resistant metal button with ring illumination. Mounting hole diameter 28 mm.

The button stand visible in the main photo is not included in the set, it can be purchased separately.

• Housing material: stainless steel

• Button/lamp head: flat

• Head shape: round

• Max. Operating voltage: 250V

• Maximum current: 5A

• LED power supply: 12V

• Protection degree: IP67

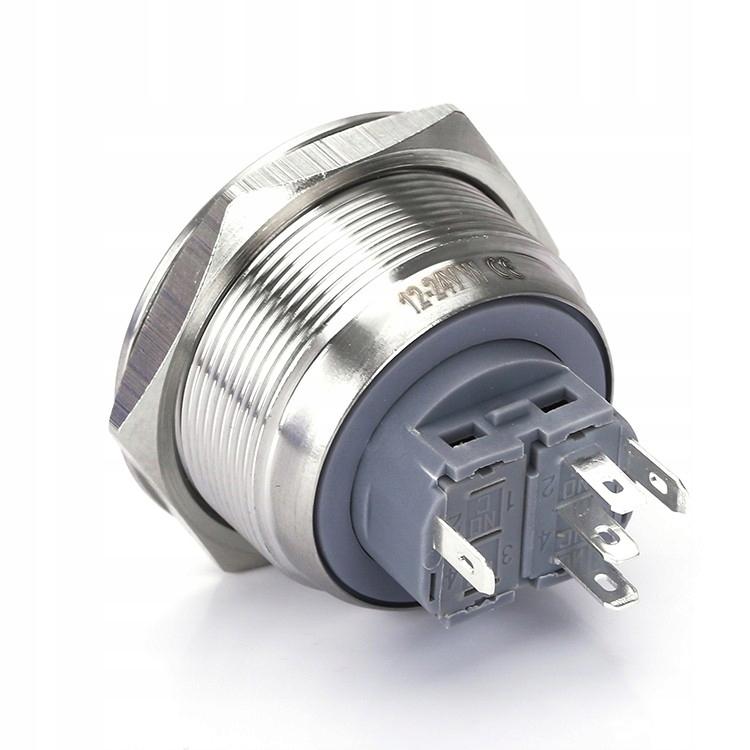

• Type of terminals: connector, solder

• Contacts: changeover 1NONC

• Operating mode: monostable (momentary)

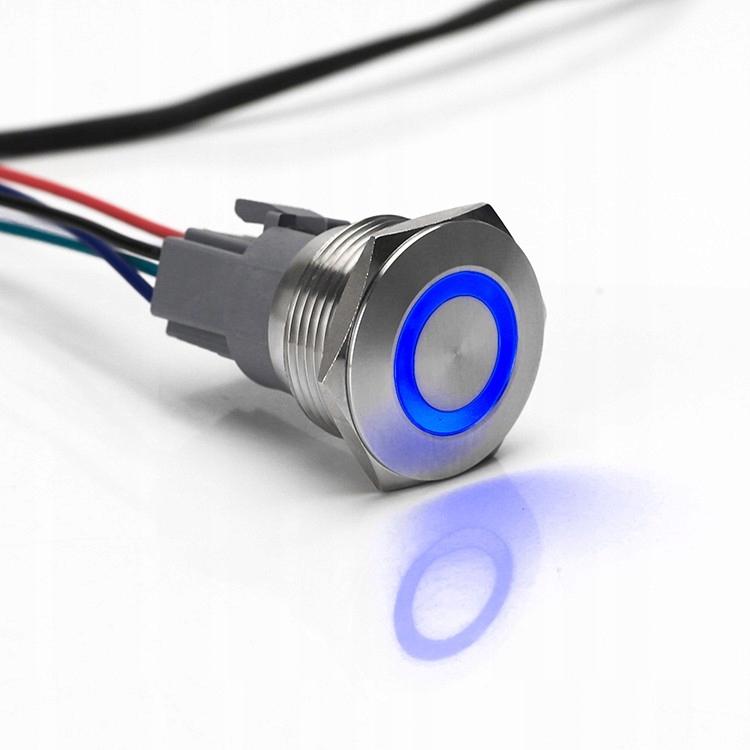

• Backlight: blue

• Contact resistance: 1000MOhm

• Electrical strength 2000VAC

• Operating temperature: -20°C - +55°C
