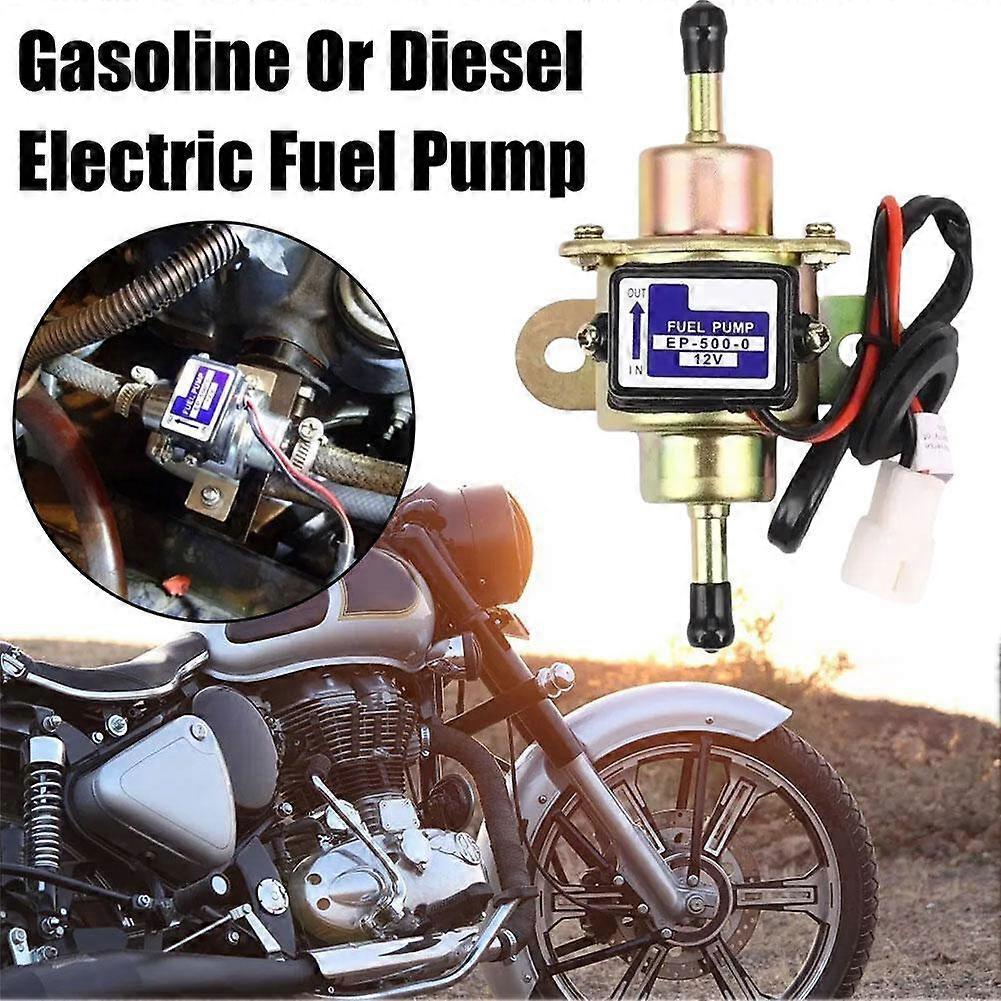

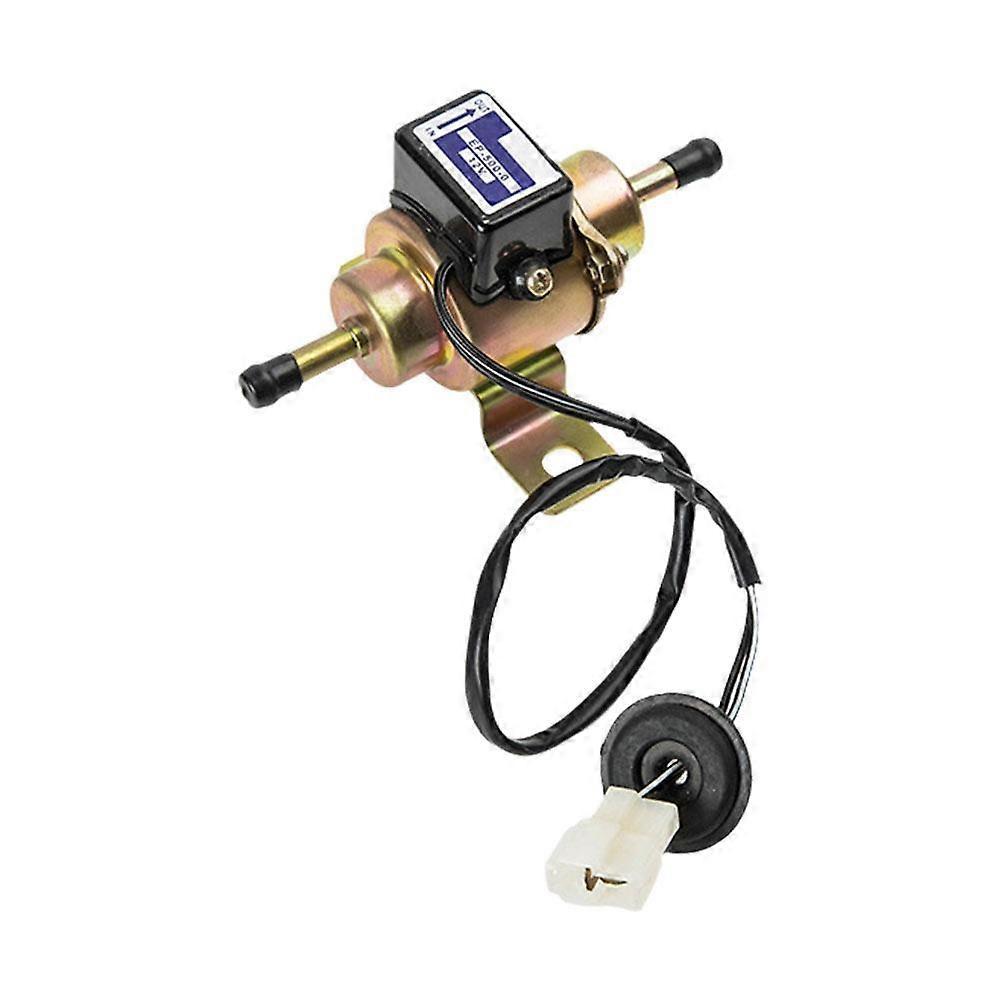

Fuel Pump 12V Universal Low Pressure Gas Diesel Electric EP5000 EP-500-0 SVF1 D2

For Kubota Yanmar Cub Cadet EP500-0 EP-500-0 FP7901-017 12V Universal Low Pressure 3-5 psi Petrol or Diesel Electric Fuel Pump

Application:

For Kubota For Yanmar For Cub Cadet.etc

Compatible with the following part Numbers:

12585-52031

12585-52030

035000-0460

68371-51210

EP-500-0

200J360FP

Voltage: 12V.

Current: 0.35A.

Pressure: 5PSI.

Flow: 80-120L/H.

Dimensions and Materials:

Material: Made of high quality brass and metal.

Features and Benefits:

1.100% quality assurance tested,easier installation.

2.Enables engines to burn fuel more efficiently and cleanly without emissions.

3.No diaphram, free flow

4.Consistent fuel flow at low range electrical amps.Very energy-efficient.

5.It is also long-lasting, with no internal rubber parts or bellows to wear out.

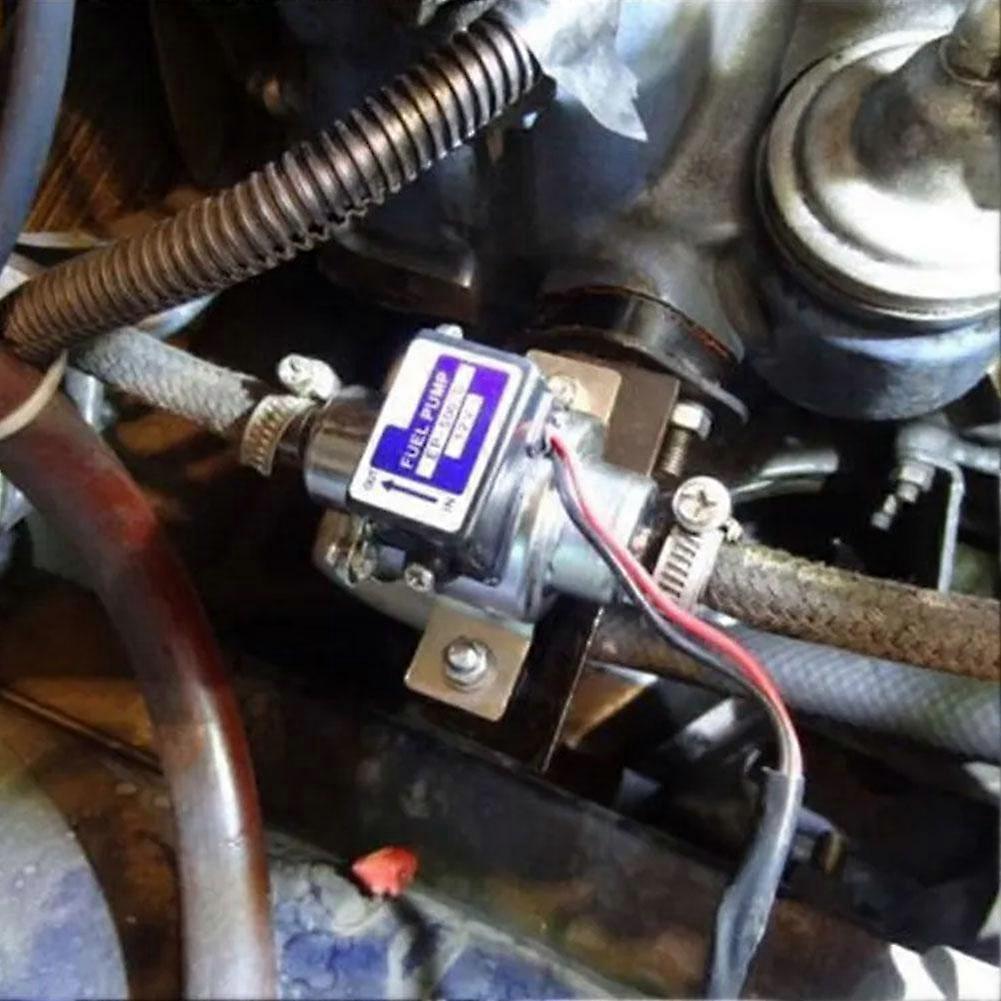

Installation Notes:

1. Disconnect the battery. Unload the mechanical fuel pump (up to you).

2. Select an area near the existing fuel line of the tank to install the pump.

3. Connect the fuel line from the tank to the fuel filter and connect the filter to the air intake of the pump.

4. Connect the carburetor transfer line to the pump outlet.

5. Connect the power cord of the fuel pump to the (P) terminal of the fuel switch.

6. Connect the wire to the (I) terminal of the oil switch to the on 12 volt supply controlled by the ignition switch

7. Connect the wires from the normally closed starting system to the (S) terminal of the oil switch.

8. Start the engine to check for work or leaks.

Package Included:

1 electronic fuel pump.
