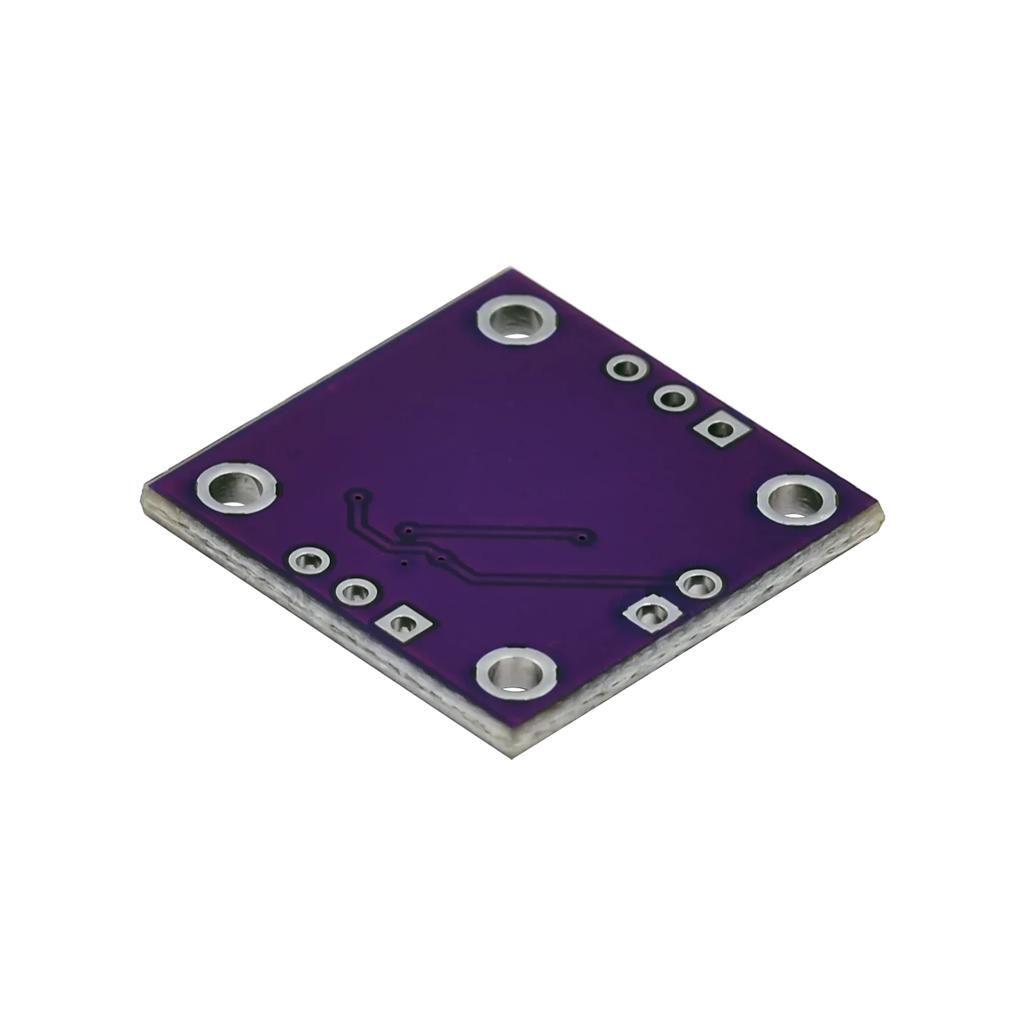

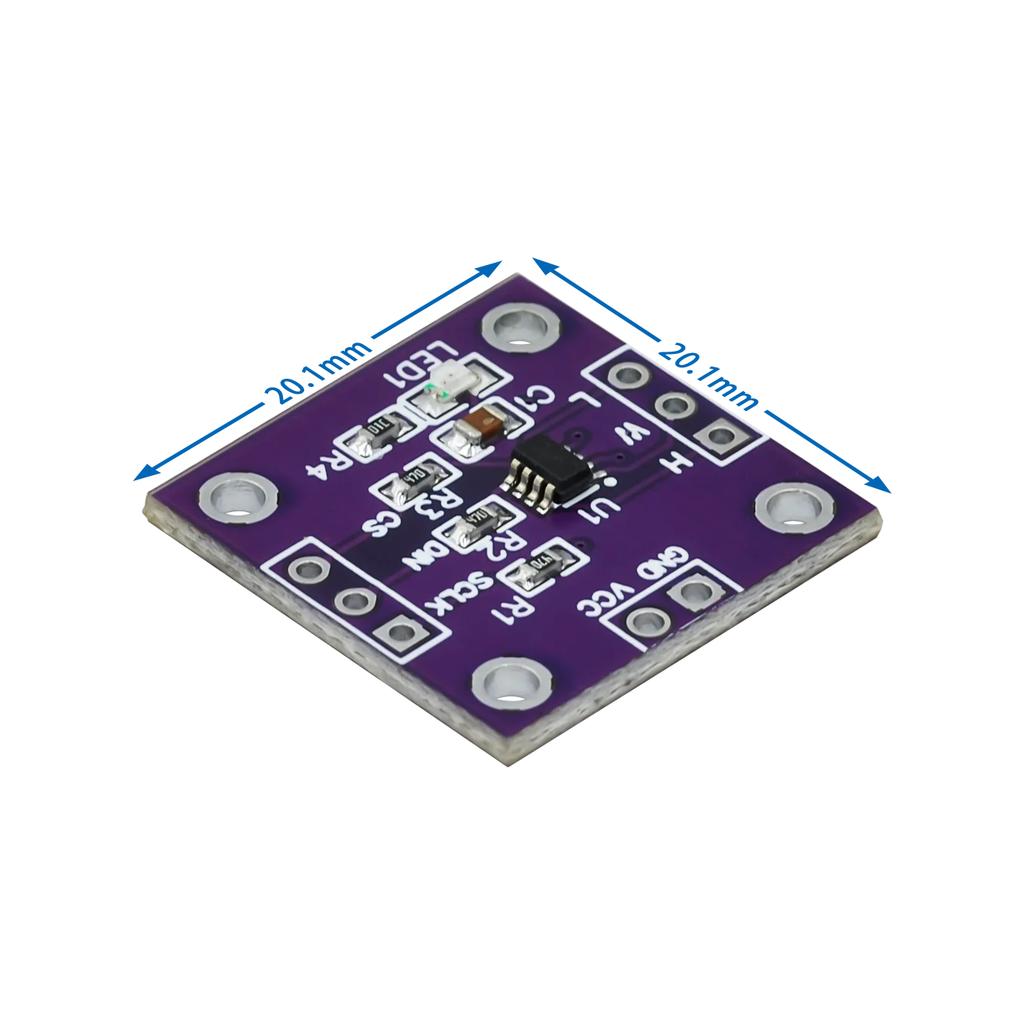

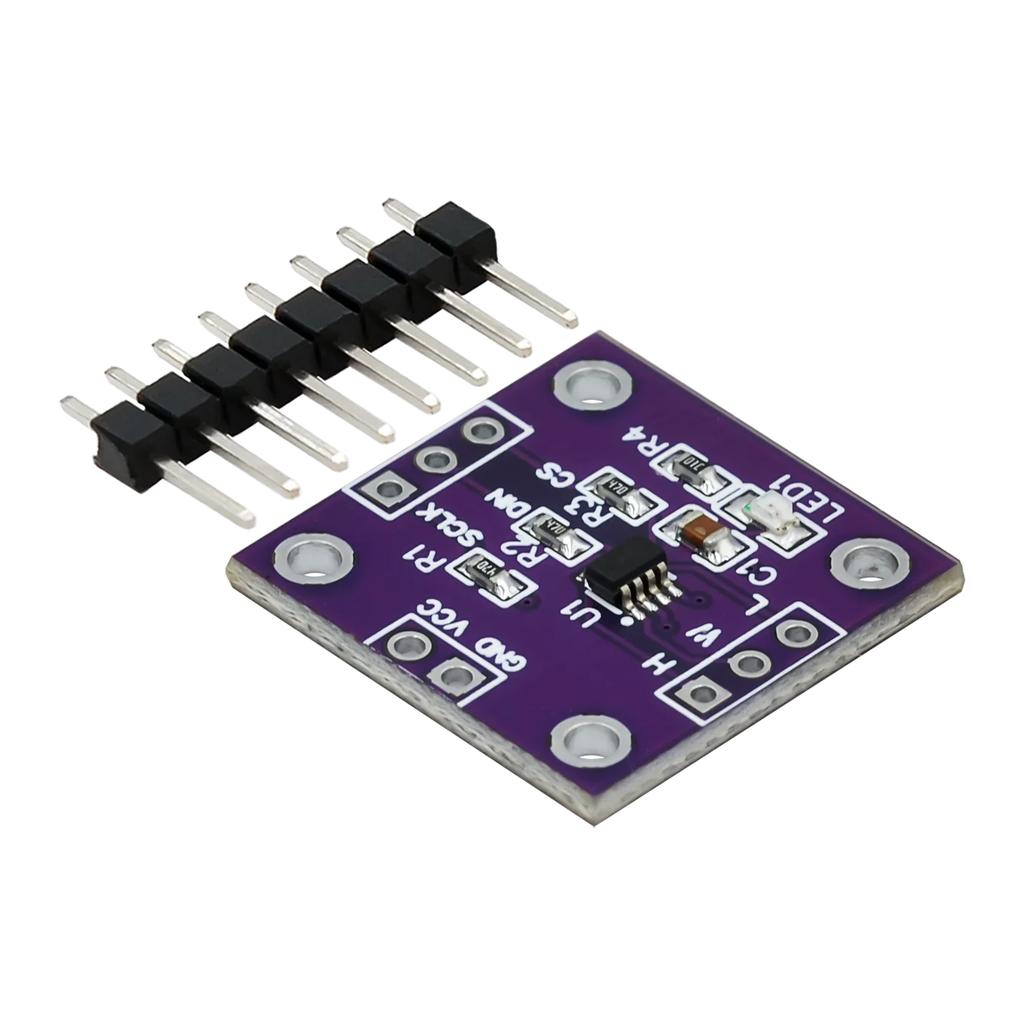

TPL0501 Digital Potentiometer Module 100K Adjustable SPI Port Adjustment Bridge Balance Sensor Ultra X9C104

High-concerned chemical : None Type : Switch Origin : Mainland China Condition : New Description Report this item or seller

Data link: https://pan.baidu.com/s/11lQqGUiCprzegxGZFhGdSw?pwd=8888

Extraction code: 8888

1 feature

1• Single channel 256 position resolution

• 100kΩ end-to-end resistance option

• Low temperature coefficient: 35ppm/°C

• SPI-compatible serial interface

• 2.7V to 5.5V single-supply operation

• ±20% resistance tolerance

• Operating temperature: -40°C to 125°C

Electrostatic discharge (ESD) performance based on JESD 22 tests

- 2000V Body Discharge mode (A114-B, Class II)

2 Applications

• Adjustable power supply

• Adjustable gain amplifier and offset trim

• Precision calibration of set point thresholds

• Sensor fine-tuning and calibration

• Alternative products for mechanical potentiometers

3 Note

The TPL0501 device is a single channel line with 256 tap positions

Sex tap digital potentiometer. The device can be used as a three-terminal potentiometer or a two-terminal potentiometer

A rheostat. The TPL0501 device is equipped with one

100kΩ end to end resistance. The internal registers of the TPL0501 device do

Access using SPI-compatible interfaces. Nominal temperature of the TPL0501 device

The degree coefficient is 35ppm/°C.
